CX 1x OVAL 110/4 BCD N/W traction chainring


$87.95
Color : Black
Variant : 38Size Guide
Availability

Don't wait, order now. Bolts included.

4.63 of 5 - 145 votes
Thanks for your rating.

Do you like this product? Share it with your friends!

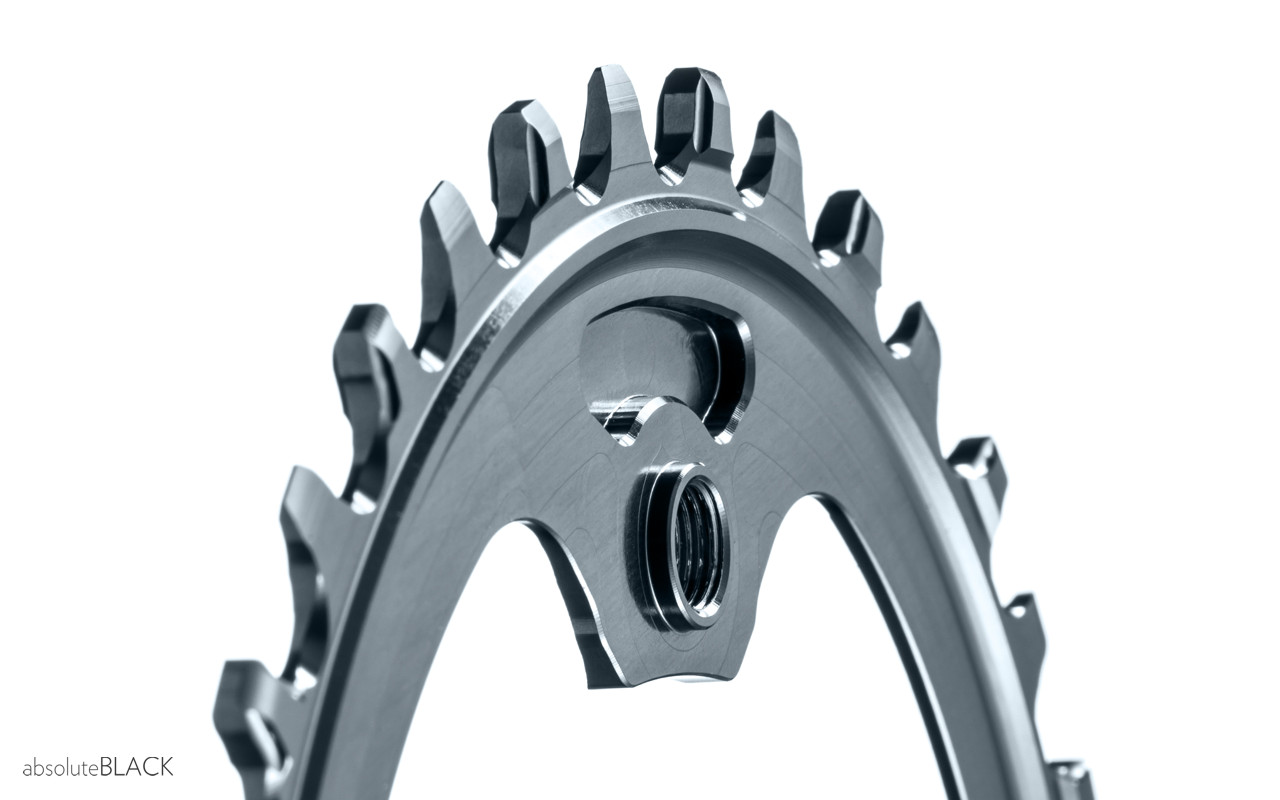

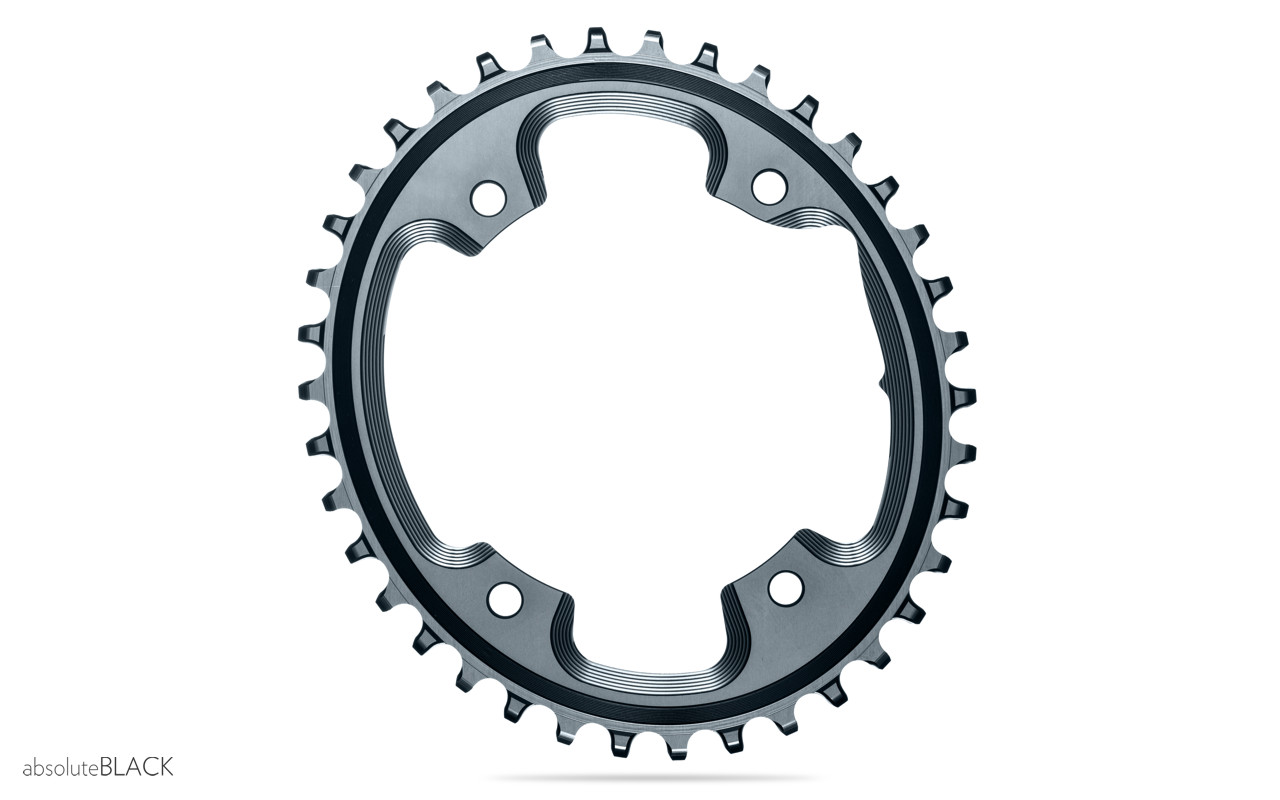

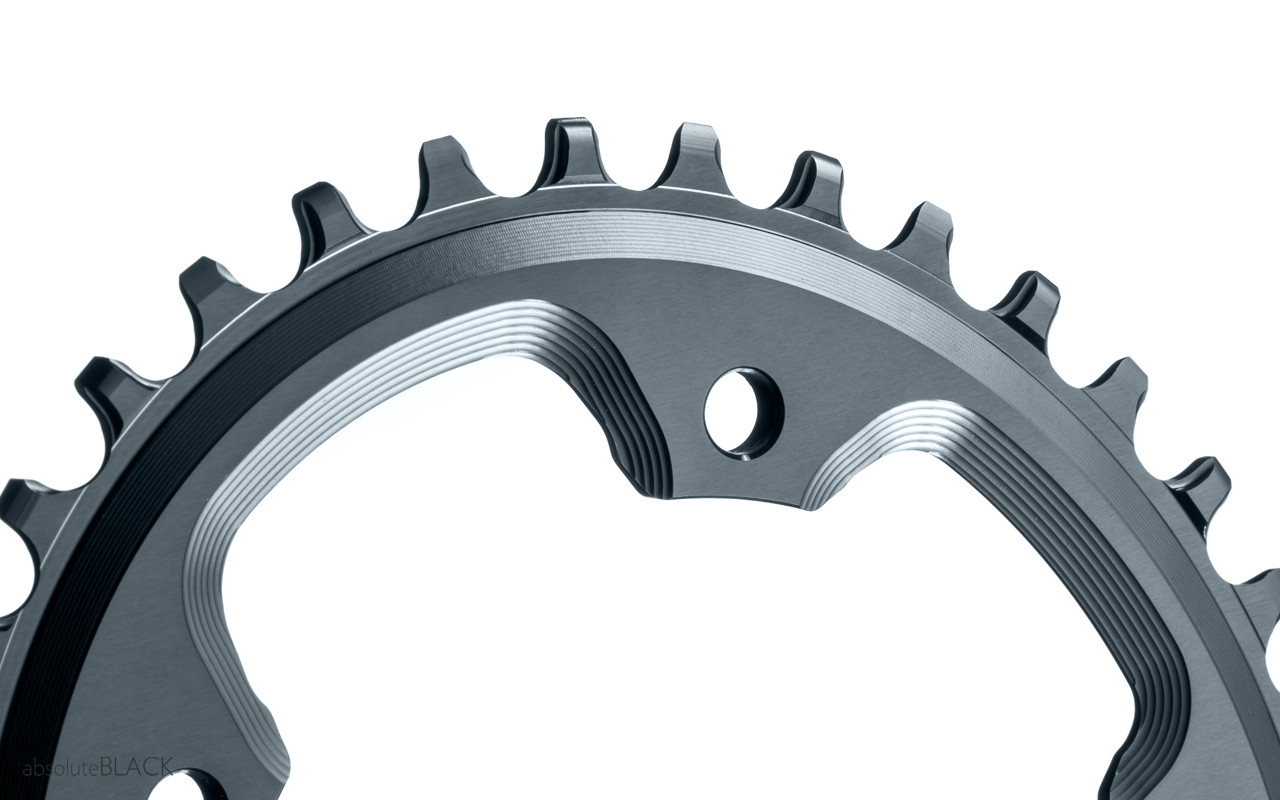

absoluteBLACK Premium 1X Cyclocross 110/4 bcd Oval narrow-wide chainrings are designed for Shimano 4 bolt cranks like Dura-Ace 9100, 9000, Ultegra 8000, 6800 and many others, apart from GRX. Perfect choice for Cyclocross and Gravel 1X setup with road cranks. Delivered with mounting bolts. Chainring has 1.5mm offset towards frame for perfect chainline.

Ovals helped me with my osteoarthritis in both knees

" The oval rings continue to impress me and have made a genuine difference to my riding particularly as suffer from osteoarthritis in both knees. There does not seem to be as much stress on my knees and they don't ache when I have completed my rides. I am super impressed!"

Just a few hours and I’m used to them

" I had my AB chainring installed last week and after few hours of pedaling, boom, it hit me. This chainring made a big difference. My knees didn’t hurt, I felt faster on flats and uphill. "

Smooth ride and easy on the knees

" I’ll never go back to round. Super smooth, eased my knee pain, and has helped my climbs on technical ascents ten fold."

Better power delivery

" Initially, reluctant. However, after riding my 29er I was very impressed with the power distribution and no knee pain. AB undoubtable got it nailed. You won't even know your are riding an OVAL after 15 minutes time."

Great looks and even better climbing performance

" Super pleased with the overall look and performance of the chainring. I can 100% say that it does improve my pedaling while climbing and getting through rough uphill stuff. Each pedal stroke is now more fluid and cadence is better on those longer climbs."

Size (Mass +/-1g):

38T (61g), 40T (65.5g), 42T (71g) Bolts included to every chainring (mass given for chainring only)

Color

Black, Ultegra Grey

Compatibility

Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2, Ultegra 8000, R8020, R8050 & 8070 Di2., 105 R7000, R7020, R7070, Dura-Ace 9000, Ultegra 6800, Shimano 105 5800, Tiagra 4700 ; Not compatible with our bolt covers

Material

cnc machined 7075 Txxx Aluminum. Long-lasting construction

Finish

type II anodizing

Ovality

10.5-11.4% ; Timing of 112-113° after TDC (top dead center) - Patent Pending



Advantages of our special CX Oval chainrings:

*Finest design to provide excellent weight to strength ratio
*One of a kind special oval shape (Patent Pending)
*Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
*Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
*Designed to handle mud and grass with easy
*Superb quality and great look.
*You will ride faster using ovals. If you keep using round ring then others will get quicker.
*Reduces stress on knees and helps to maintain your legs fresher for longer
*You will not "feel" the oval shape at all


How to mount 110/4 Oval chainring:

First you need to remove crank from the bike. Once removed, unscrew 4 bolts that hold two original rings together with T-30 torx key. Take off both original rings. Position Absoluteblack oval chainring in place where the big chainring was. Please note that small indicator on the chainring Must sit behind crank arm - same way as original chainring indicates its position. Use provided AB bolts to lock the chainring in place using T-30 torx key with force of about 5-7Nm. Mount your crank back to the bike. Done



Always use a new chain with a new chainring.



Designed in UK. Manufactured in Poland (EU).

The World's finest oval (elliptical) road chainring. Non circular chainrings, Non-round chainrings. Asymmetrical chainrings.


Share your Oval chainring photos with us on Instagram: #OvalThis #absoluteBLACK #OVALREVOLUTION
