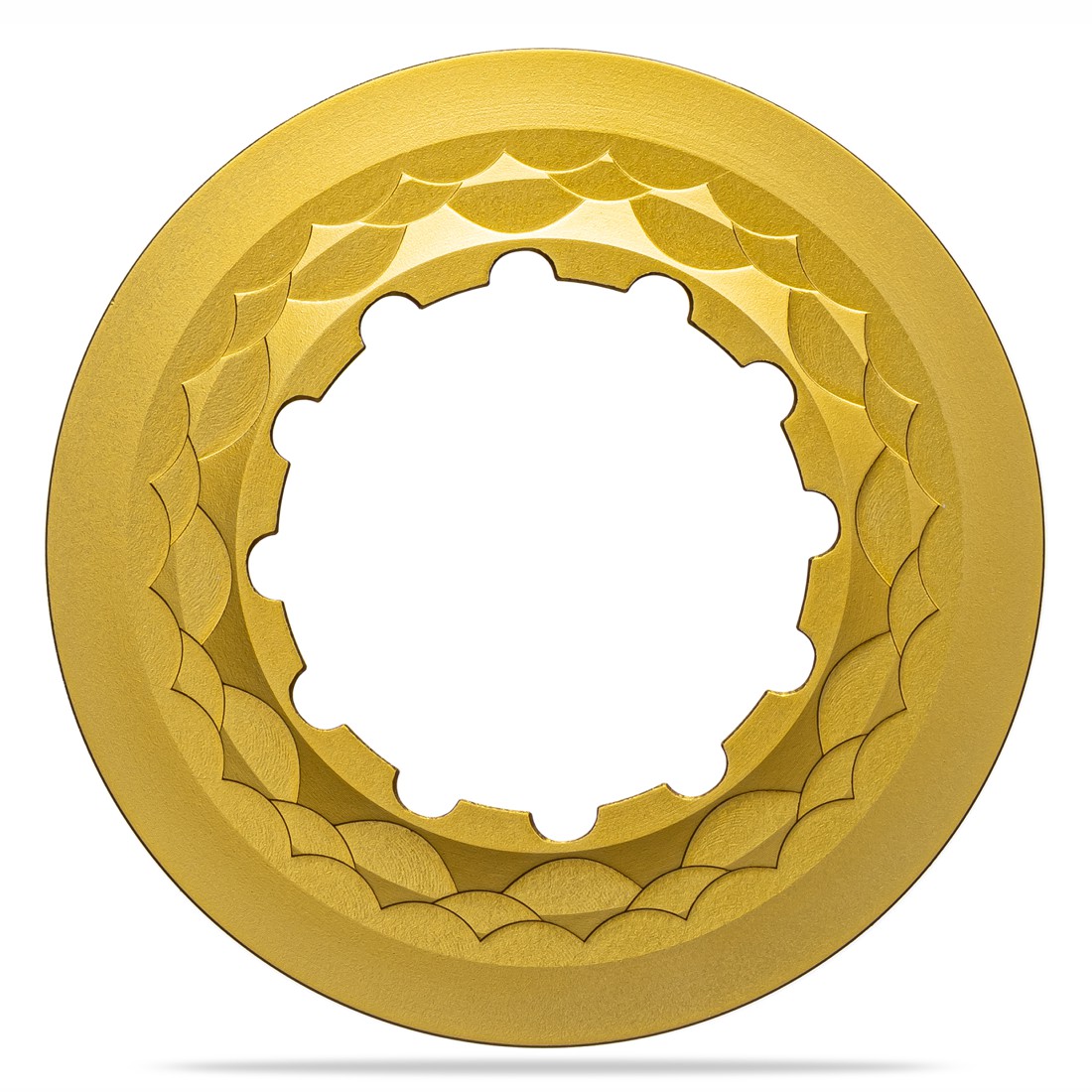

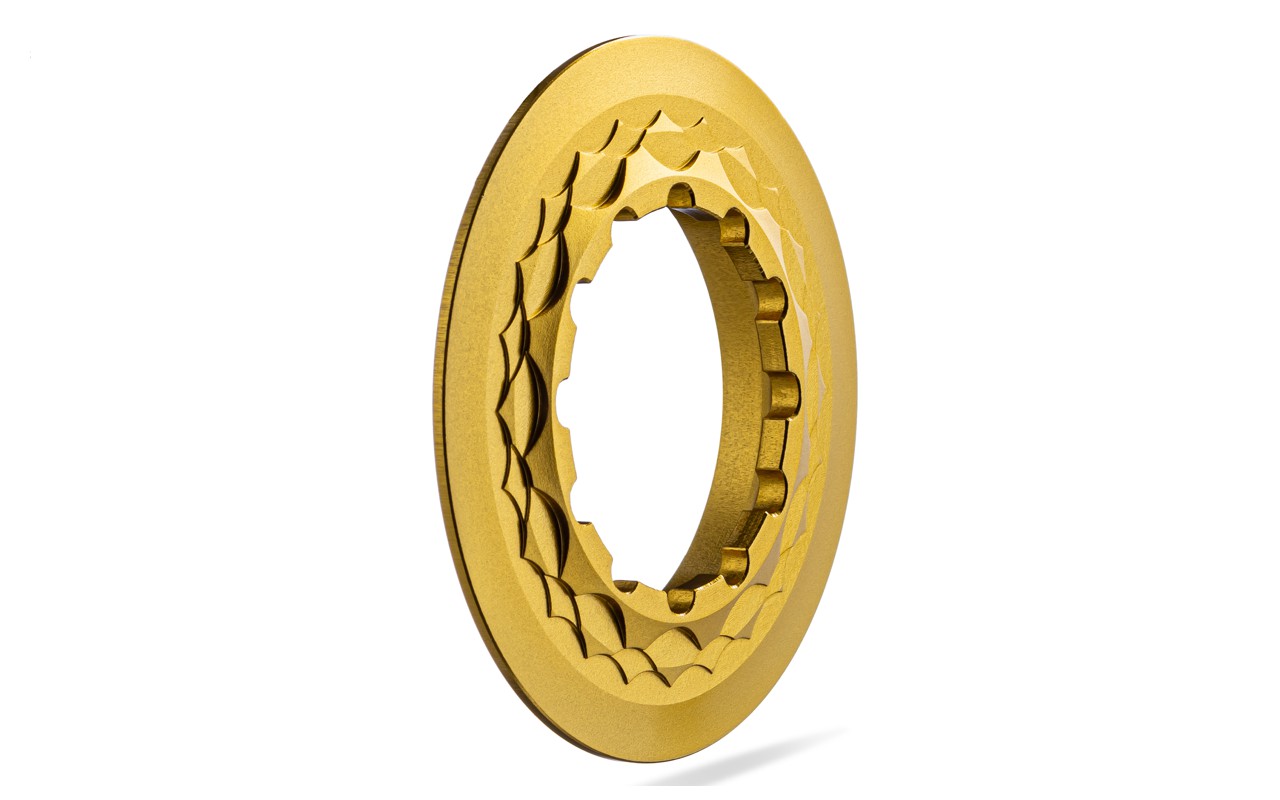

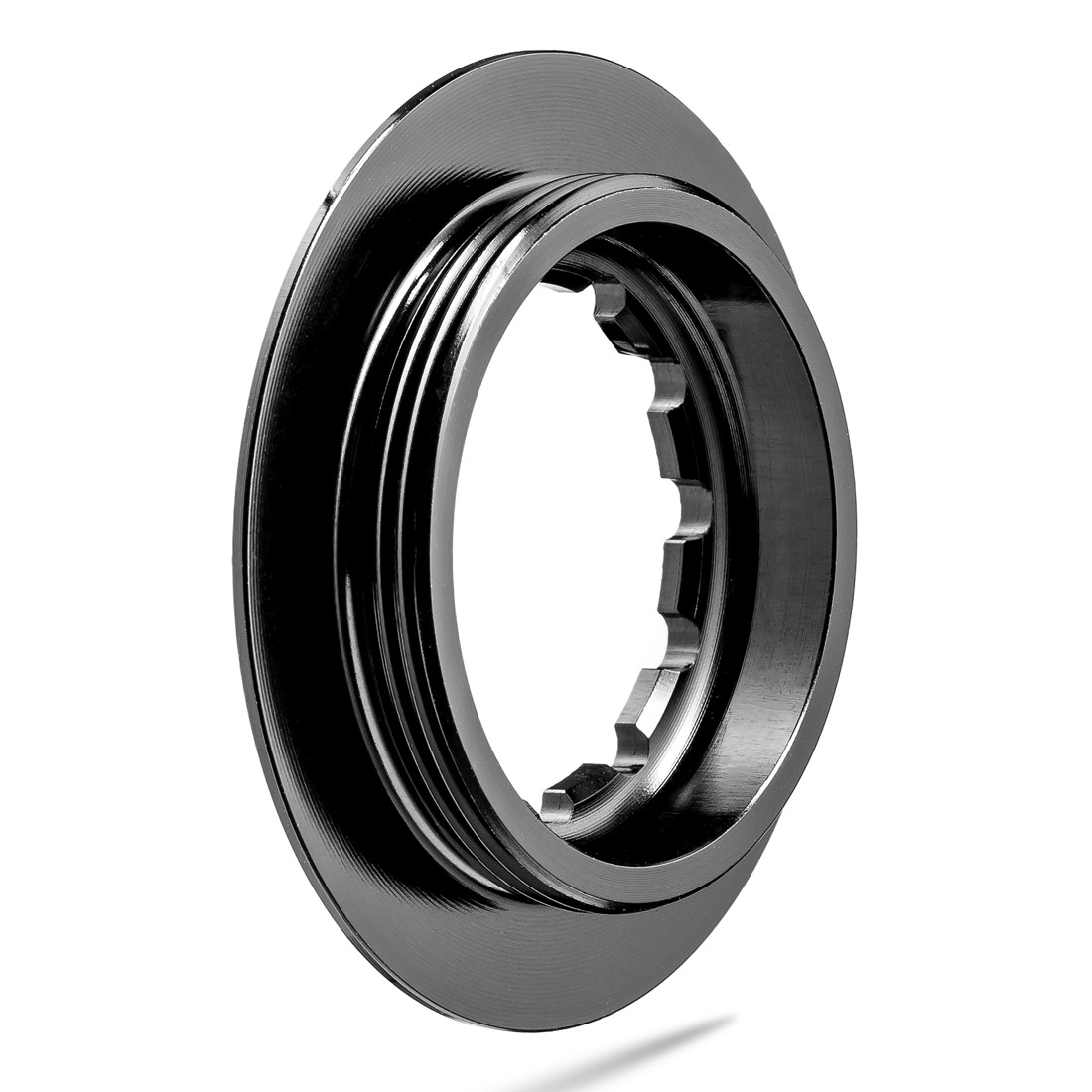

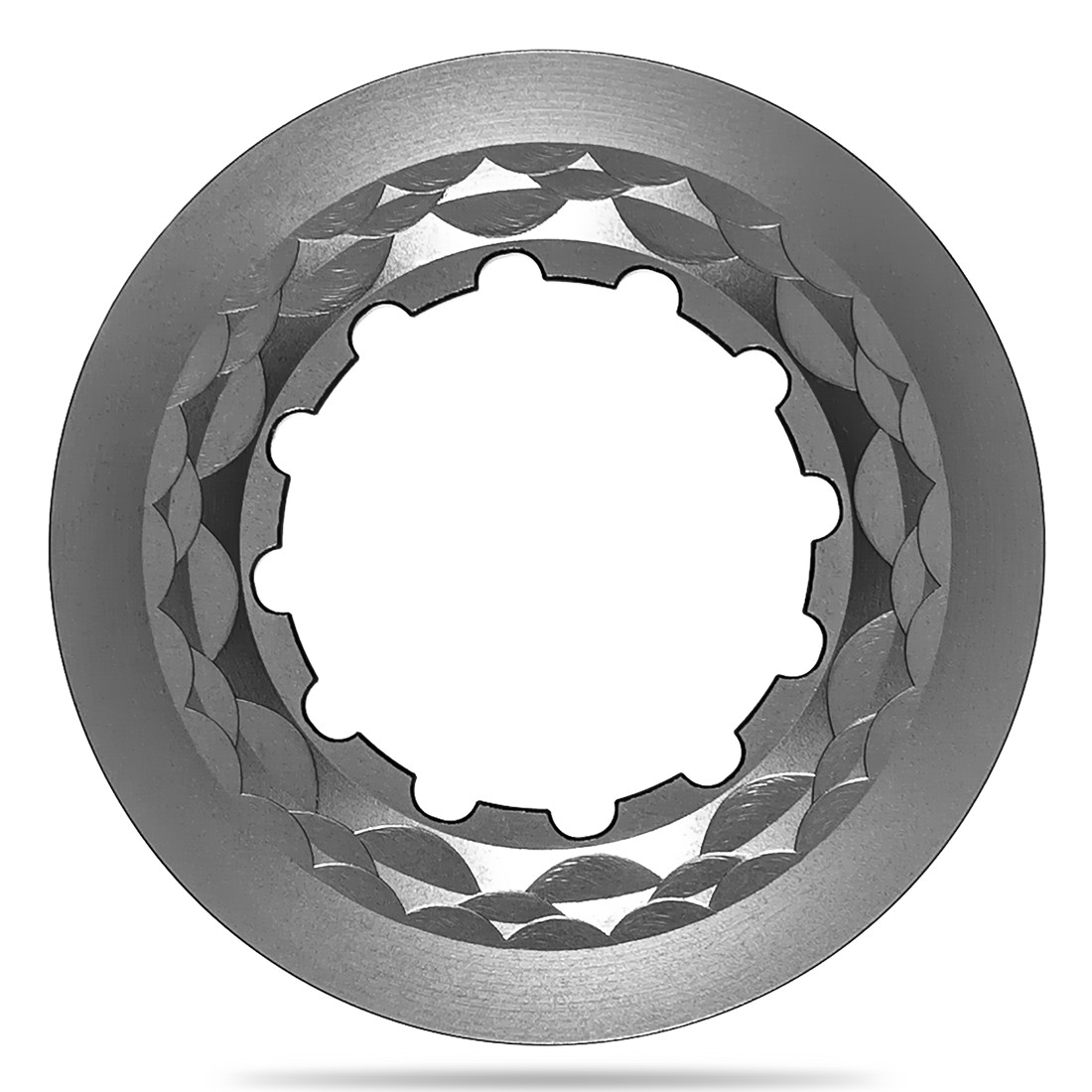

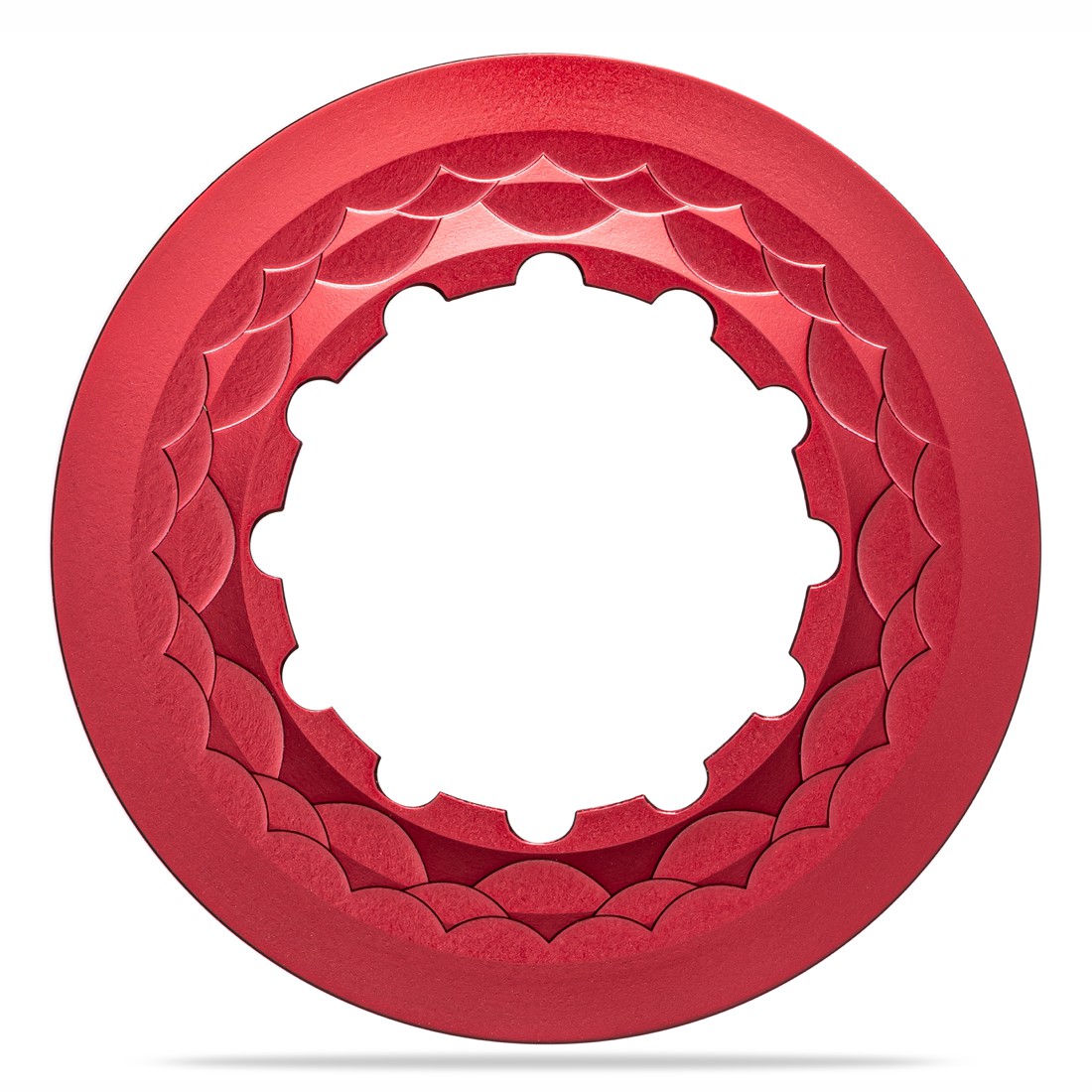

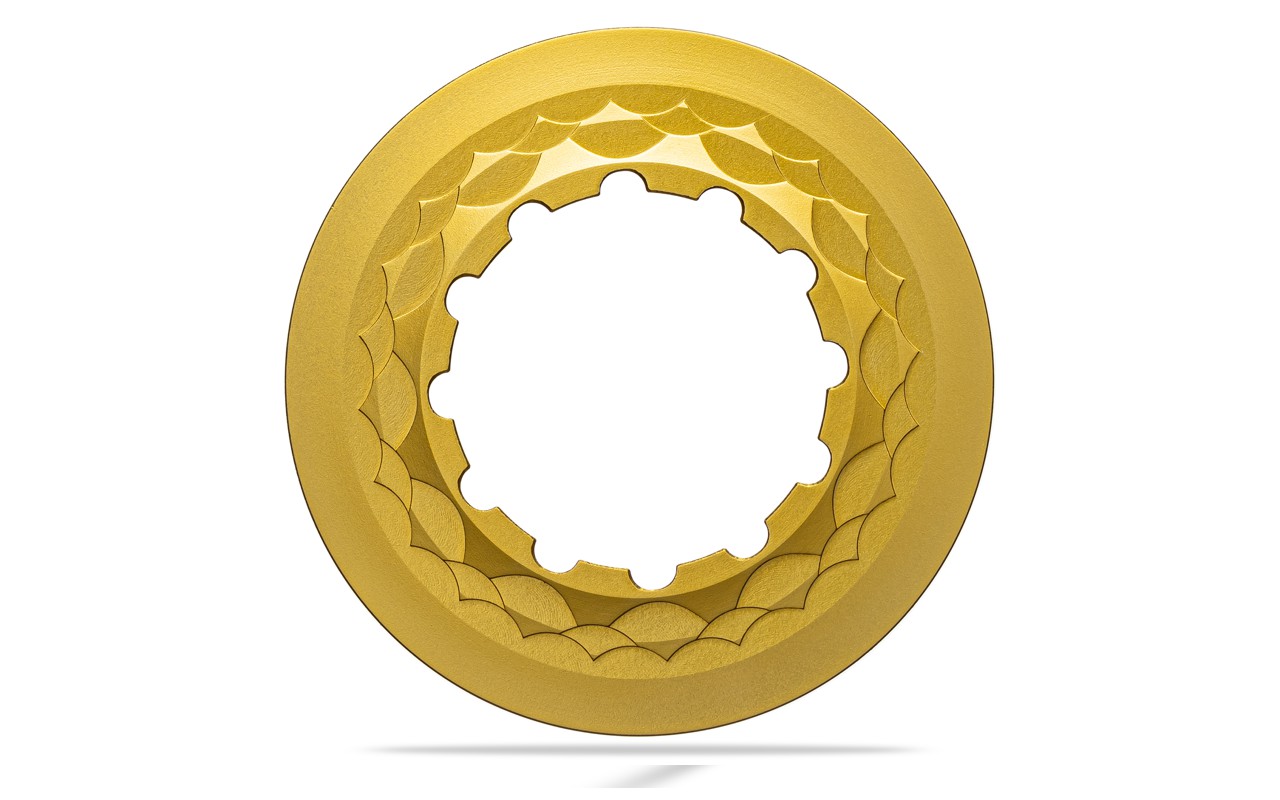

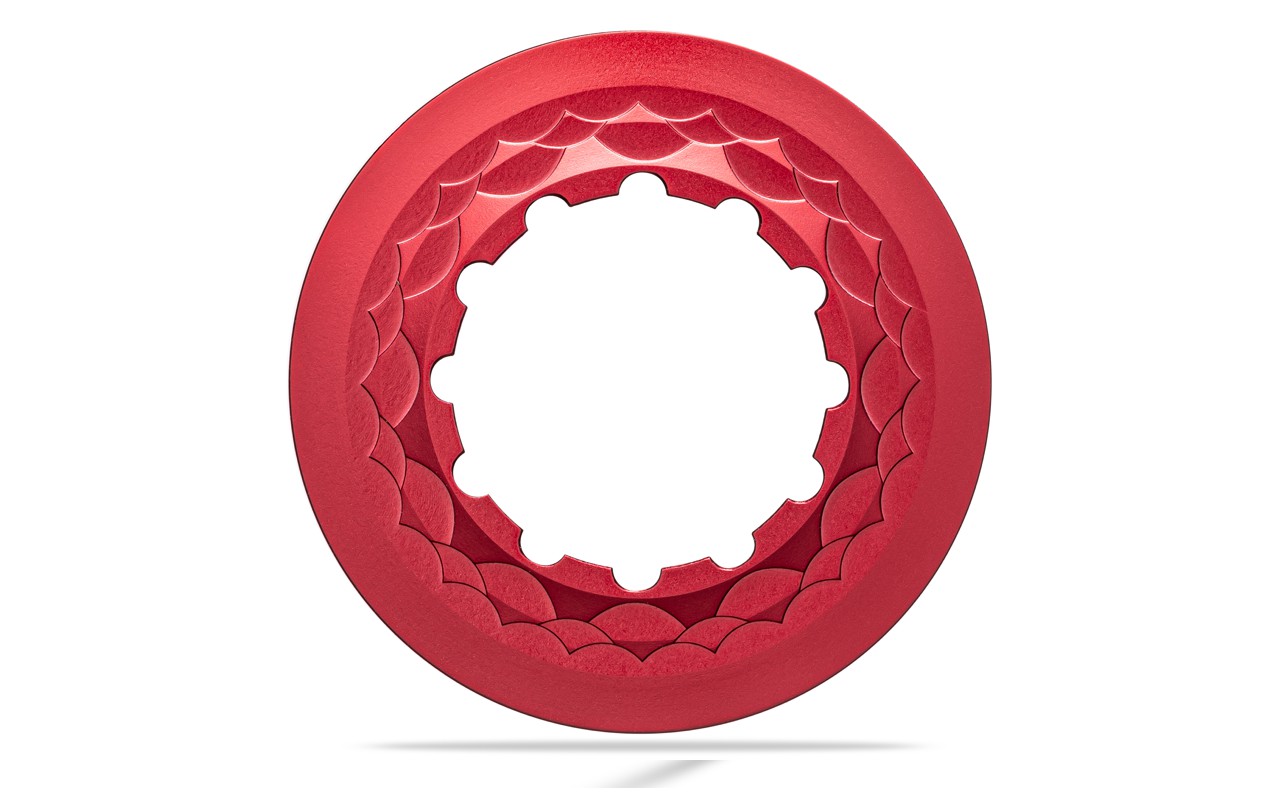

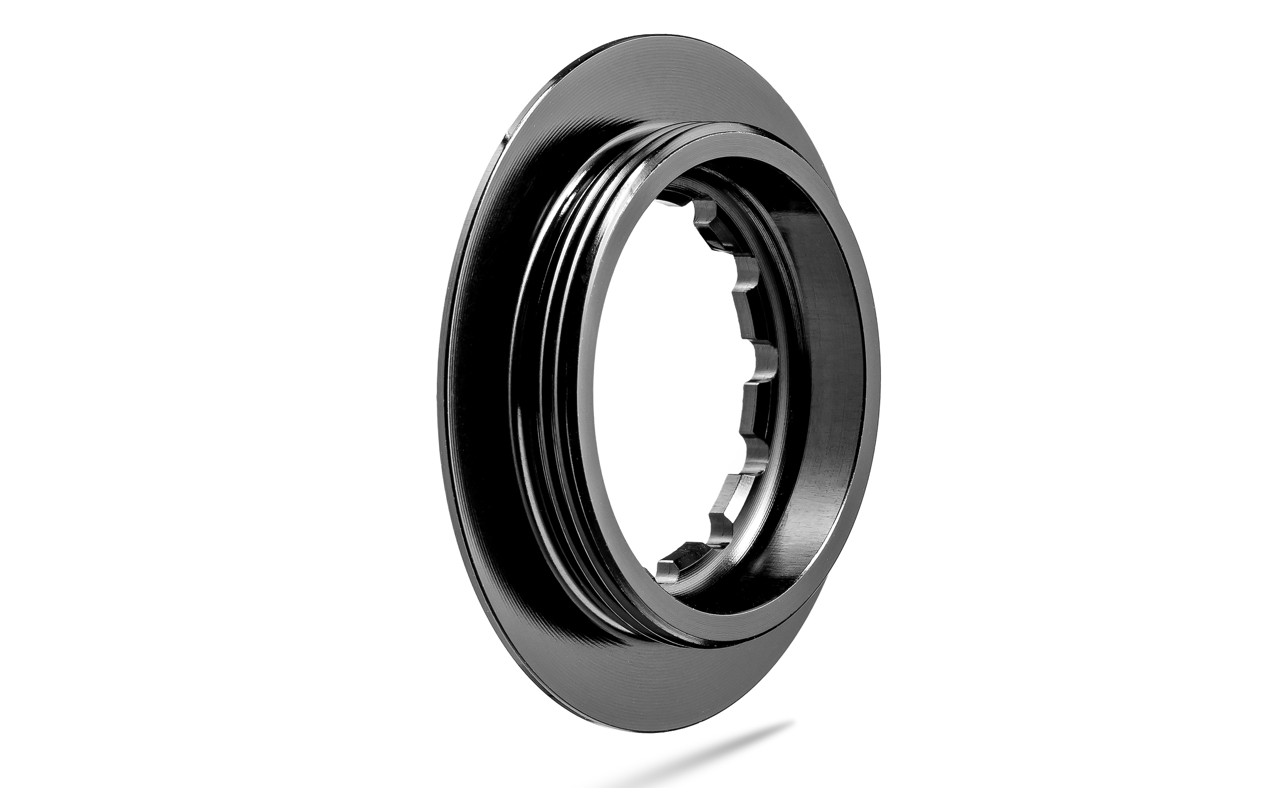

the ultimate centerlock lockring for qr & 12mm axles


$25.95
Color : Black
Variant : Road Centerlock (1pc)
Availability

Don't wait, order now.


4.80 of 5 - 186 votes
Thanks for your rating.

Do you like this product? Share it with your friends!

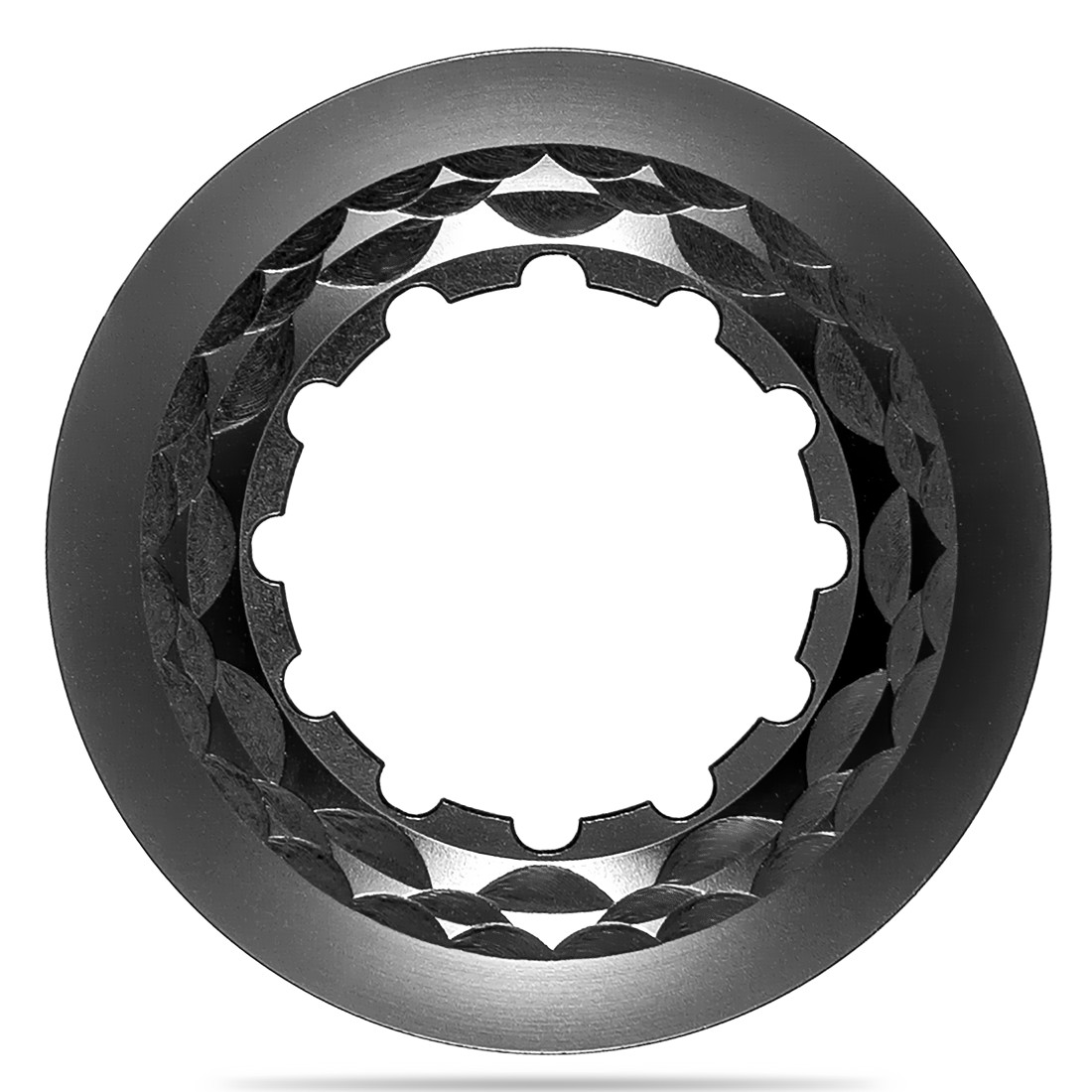

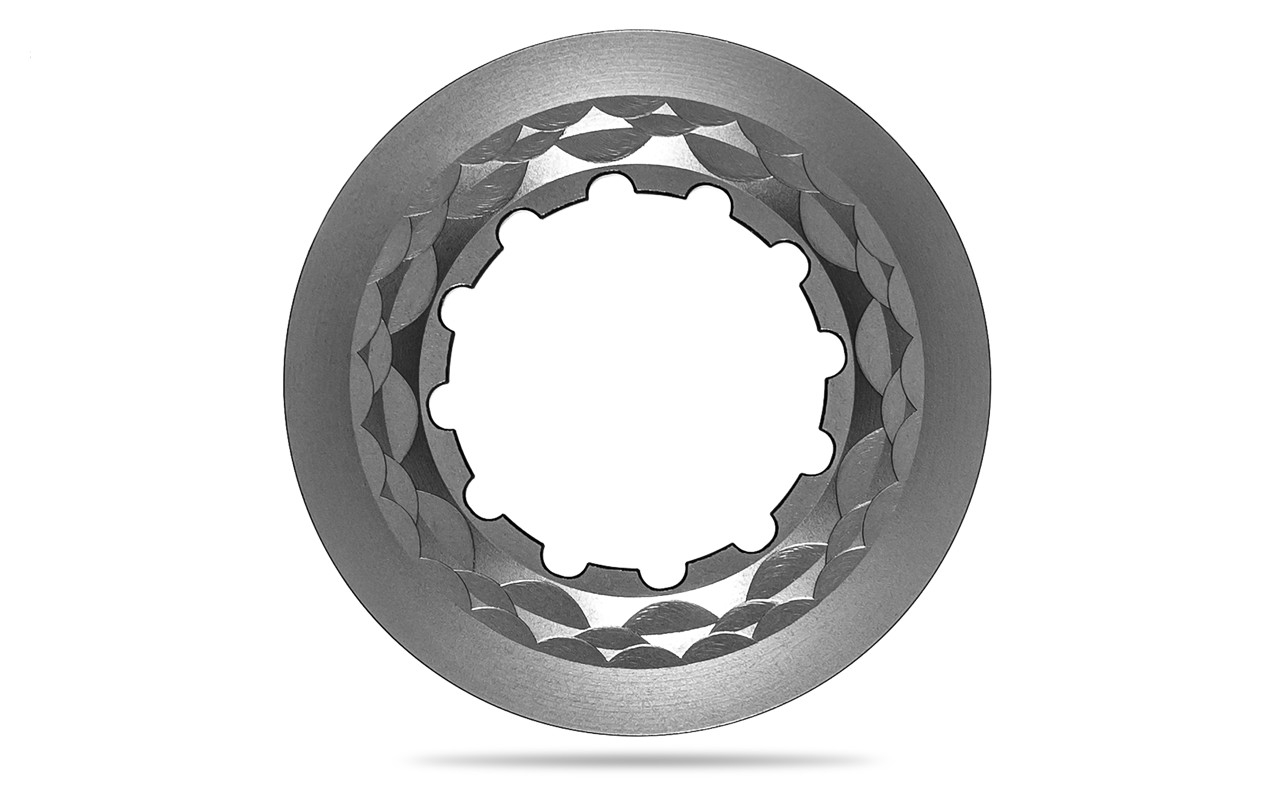

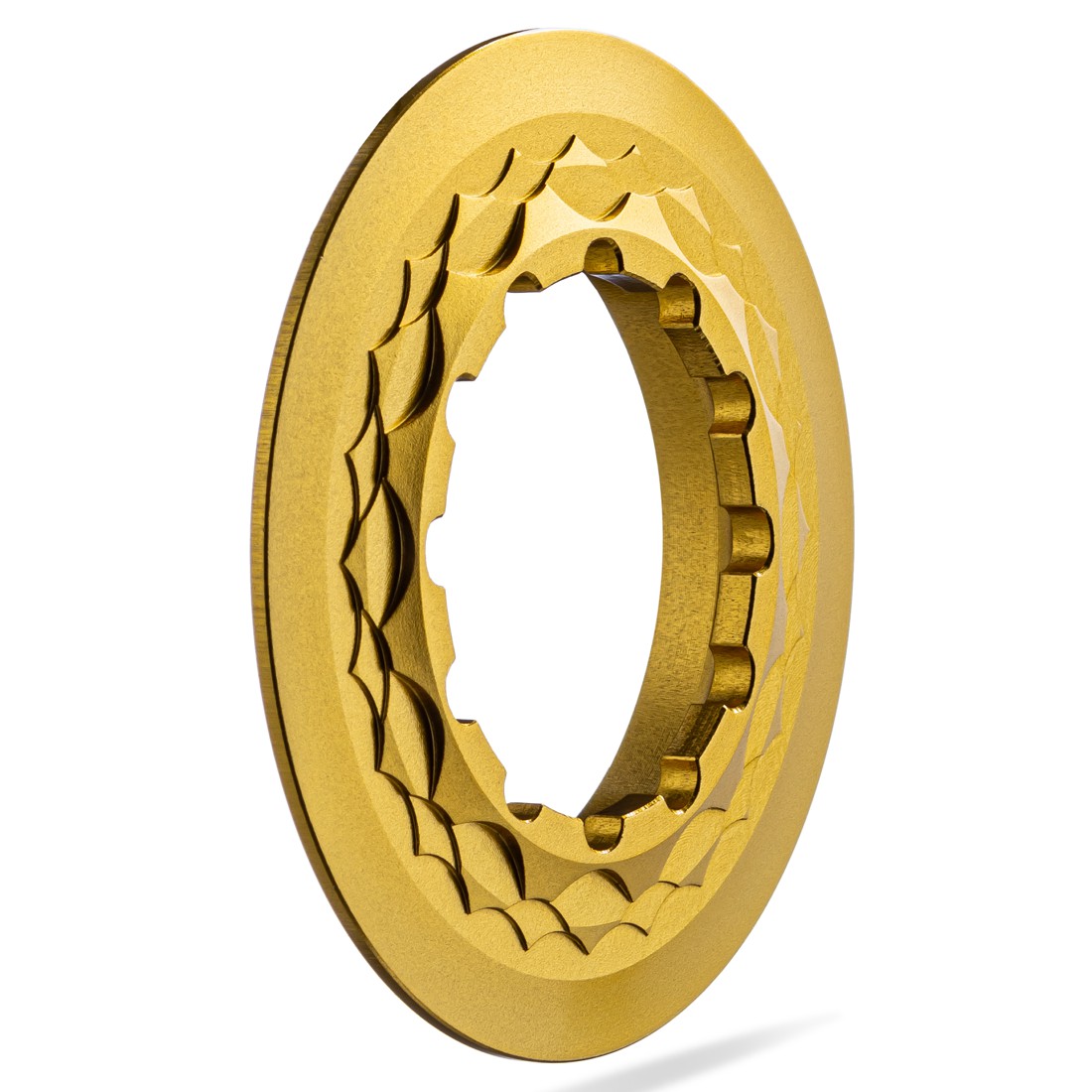

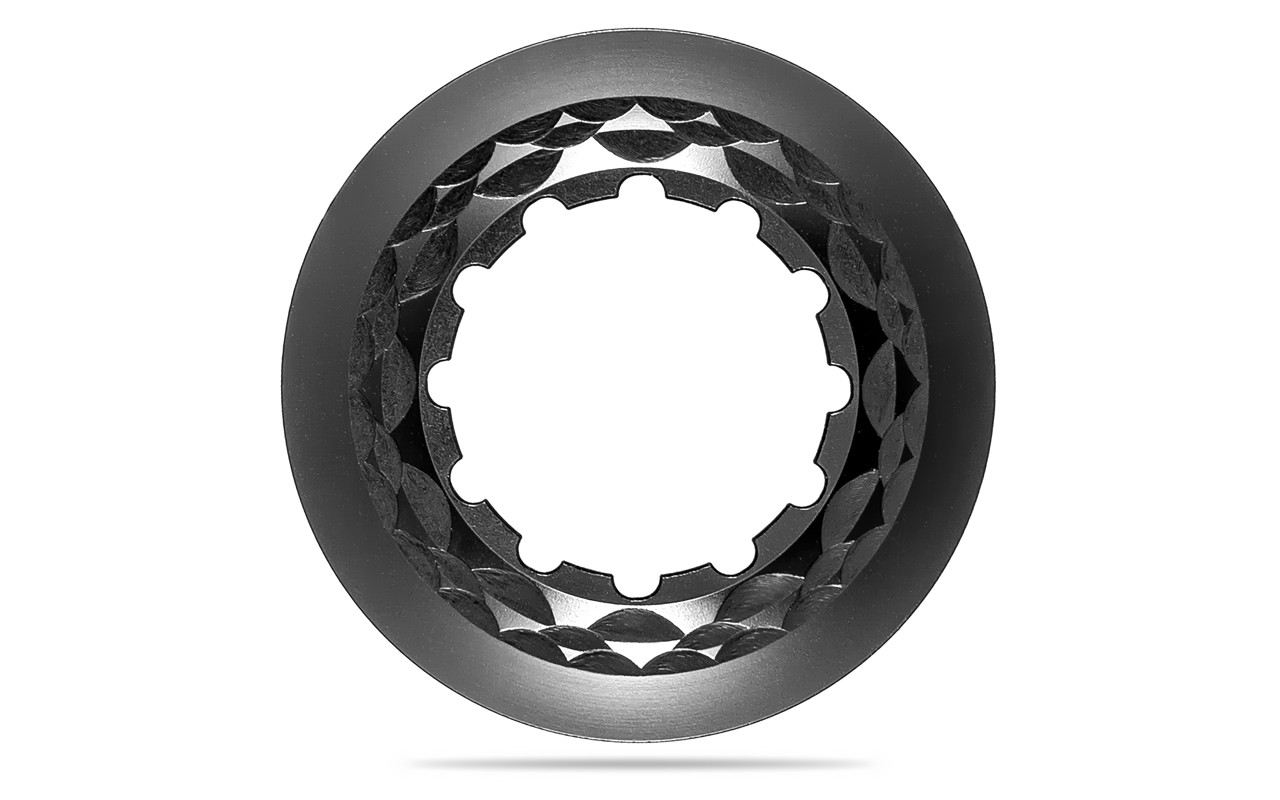

The Ultimate Centerlock Lockring is here. It's specifically designed for Road / Gravel / CX bike disc rotors fitting 12mm thru axle and QR. Ultralight design saving you over 40% weight versus stock lockring. One of a kind look. "The Ultimate" series is only available here on our website.


Size (Mass +/-1g):

5.8g

Color

Black, Titanium

Compatibility

all centerlock hubs with 12mm Thru axle and QR axle. Designed for 12 spline 23.4mm diameter tool fittings

Material

cnc machined 7075 Txxx Aluminum.

Finish

anodized

Outer diameter

41.2mm

Important

Use with Centerlock rotors only. Not compatible with centerlock adapters due to smaller diameter of the ring. Not compatible with QR15 / 20mm thru axle


How to mount Centerlock Lockring:

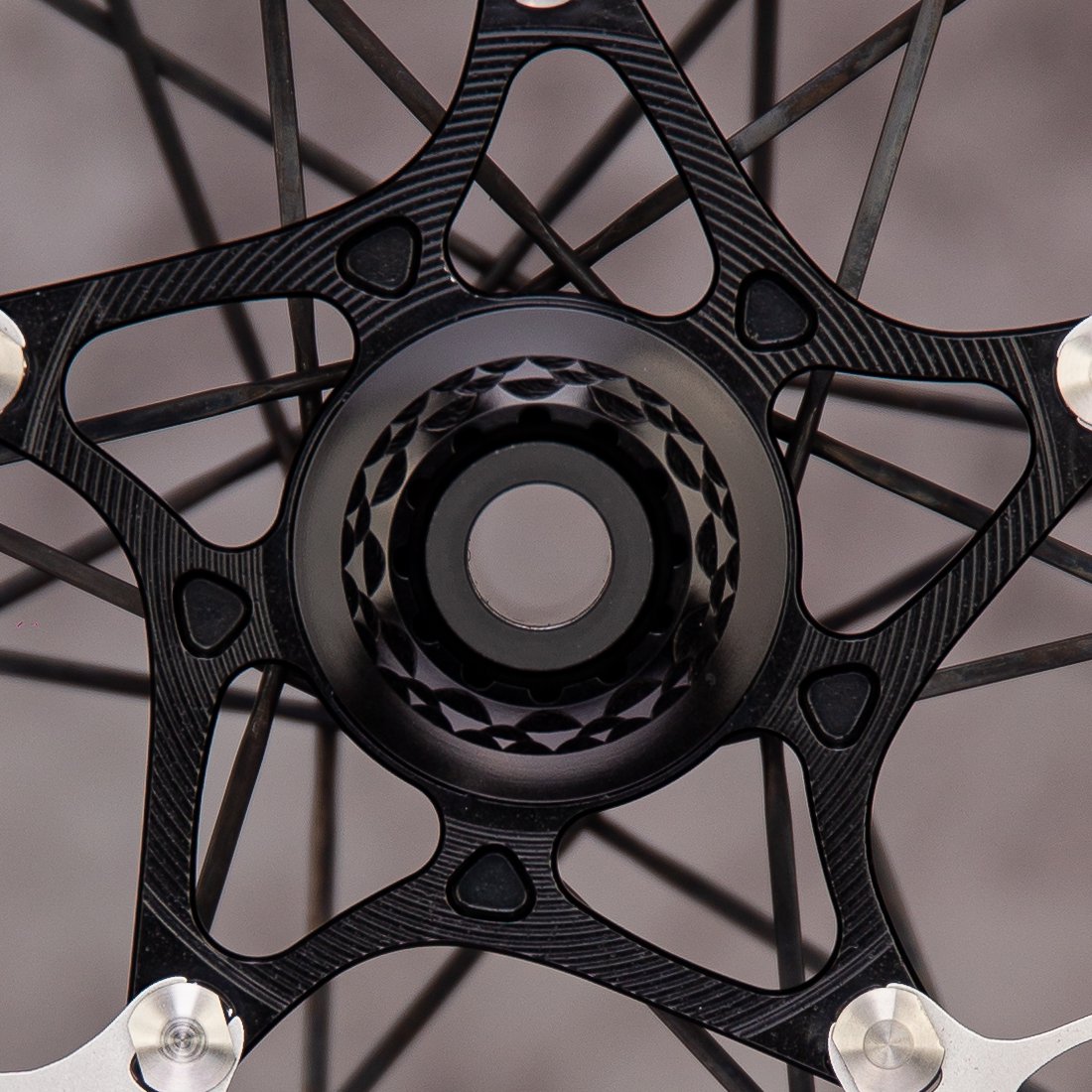

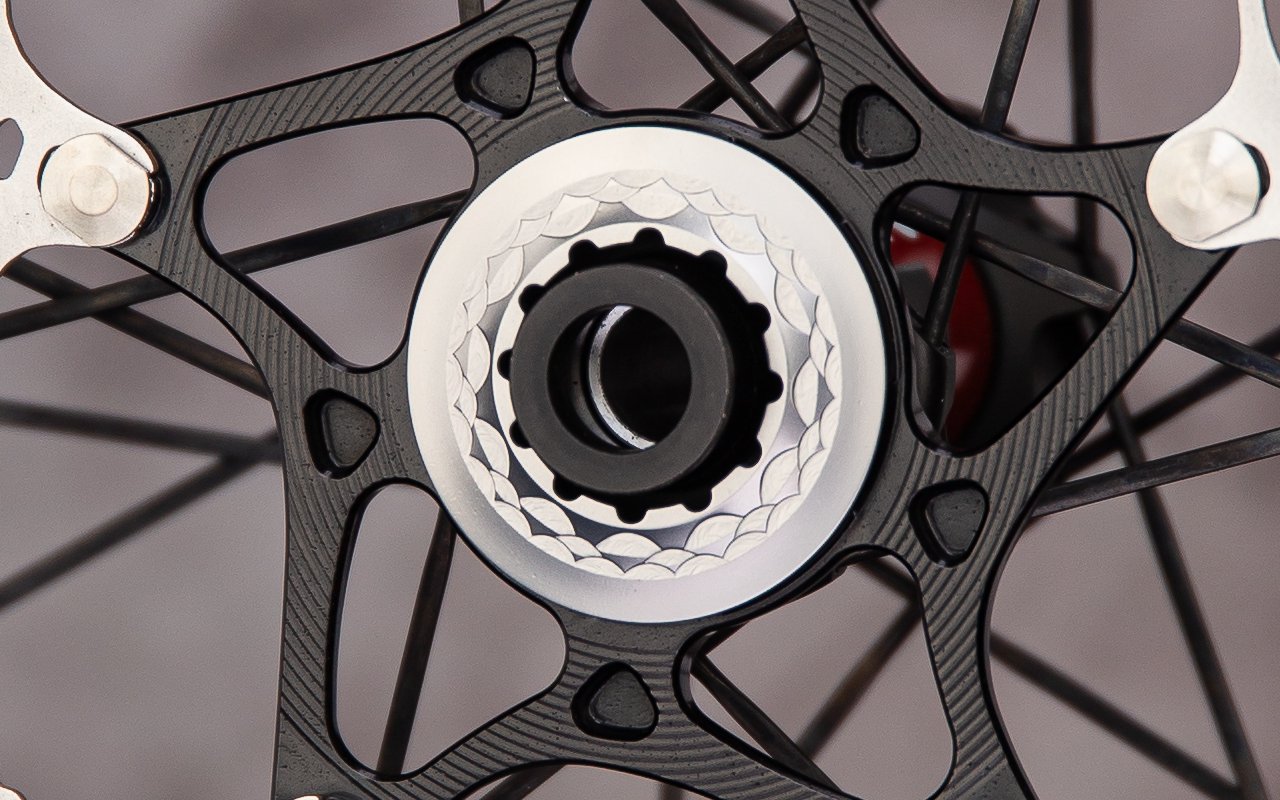

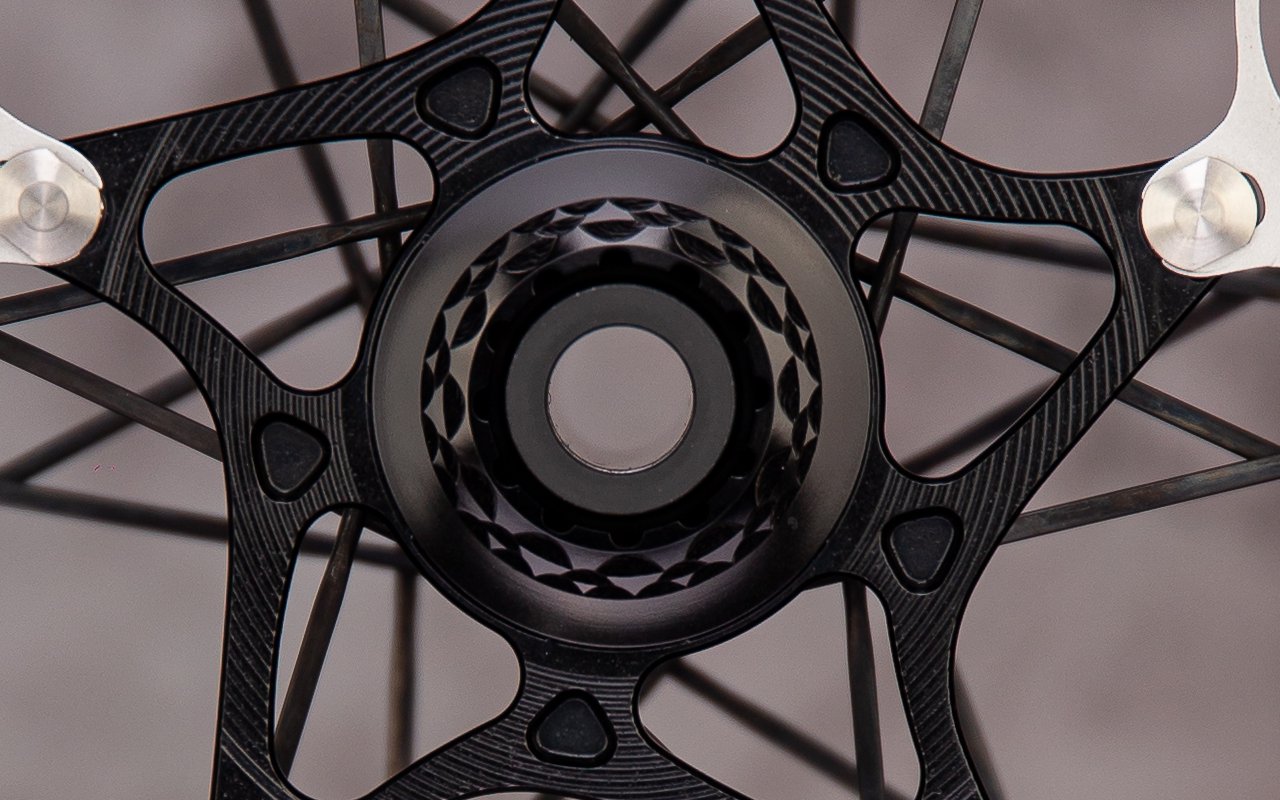

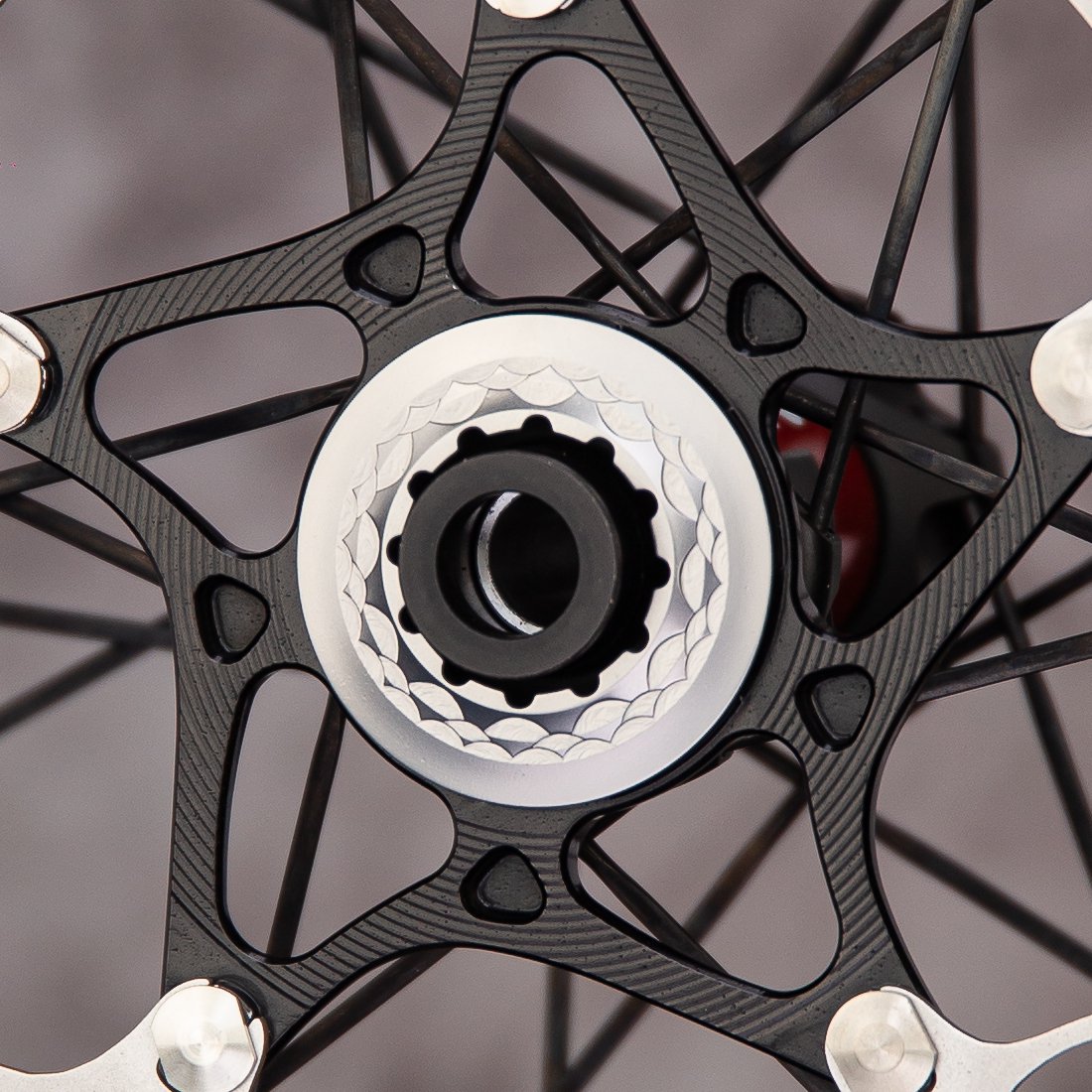

Place centerlock disc rotor on the centerlock splines on the hub. Apply a drop or two of medium strength Loctite (for eg 243) on the threads of the lockring and close the lockring with Max 35Nm. To do this you will need regular cassette tool. Do not over tighten over this value. Loctite is necessary because the lockring doesn't have knurled backside.


Designed in UK. Manufactured in Poland (EU).
