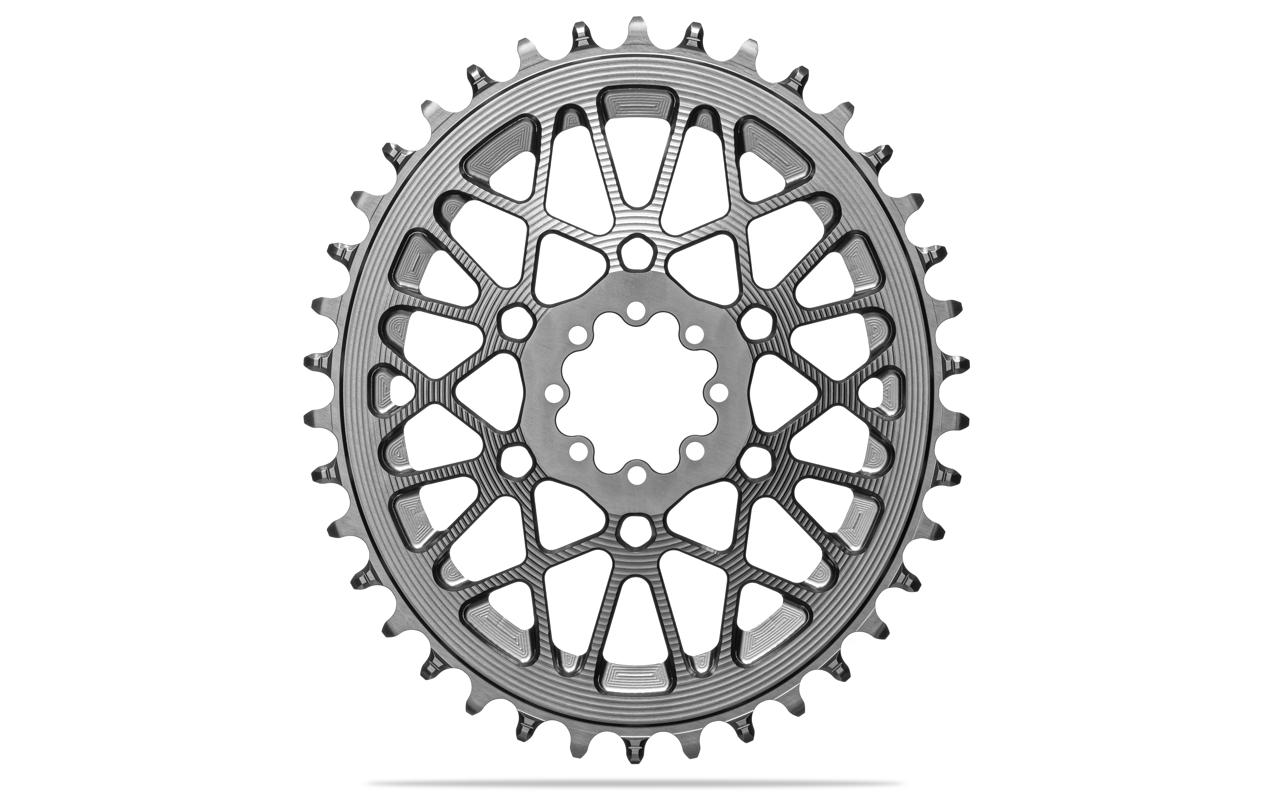

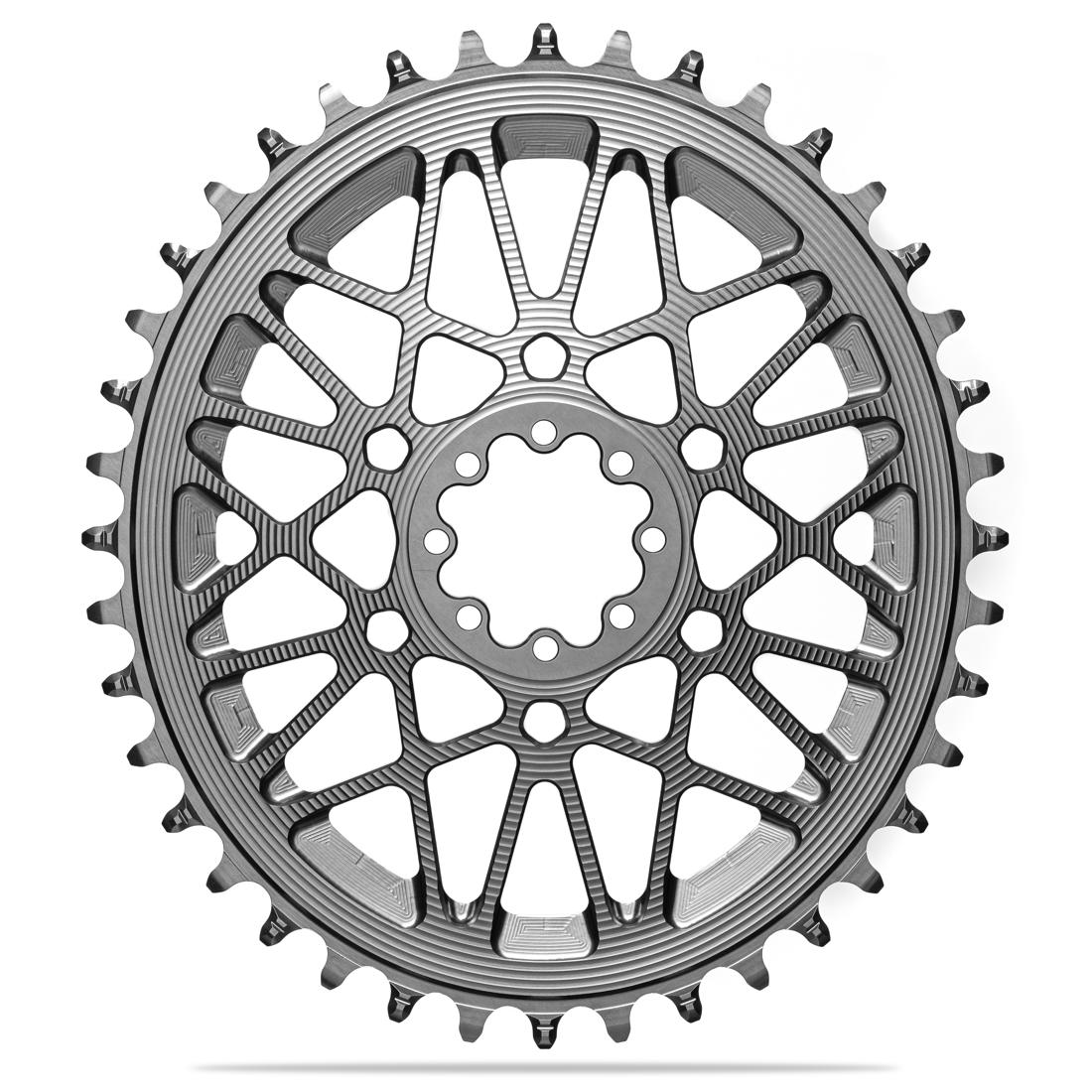

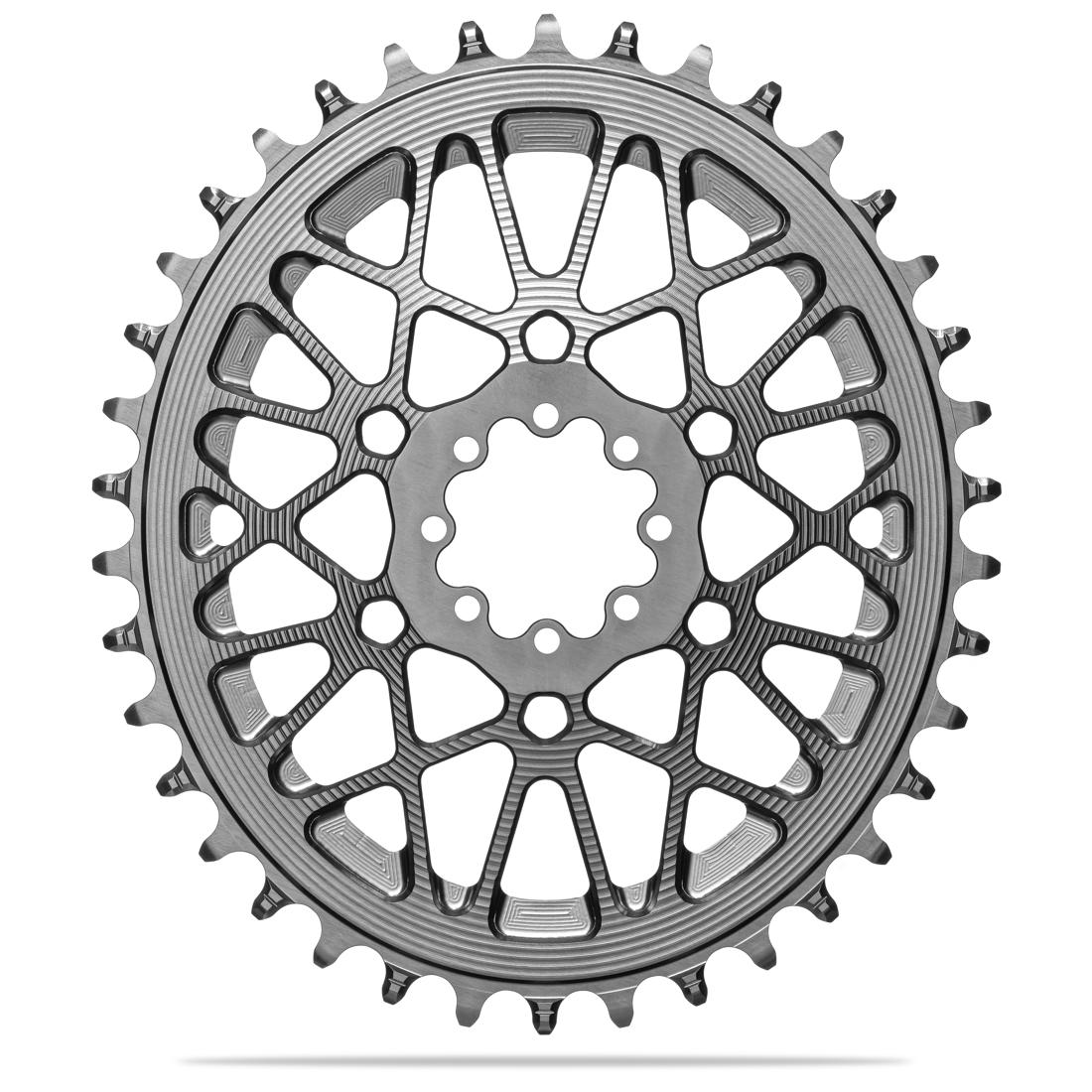

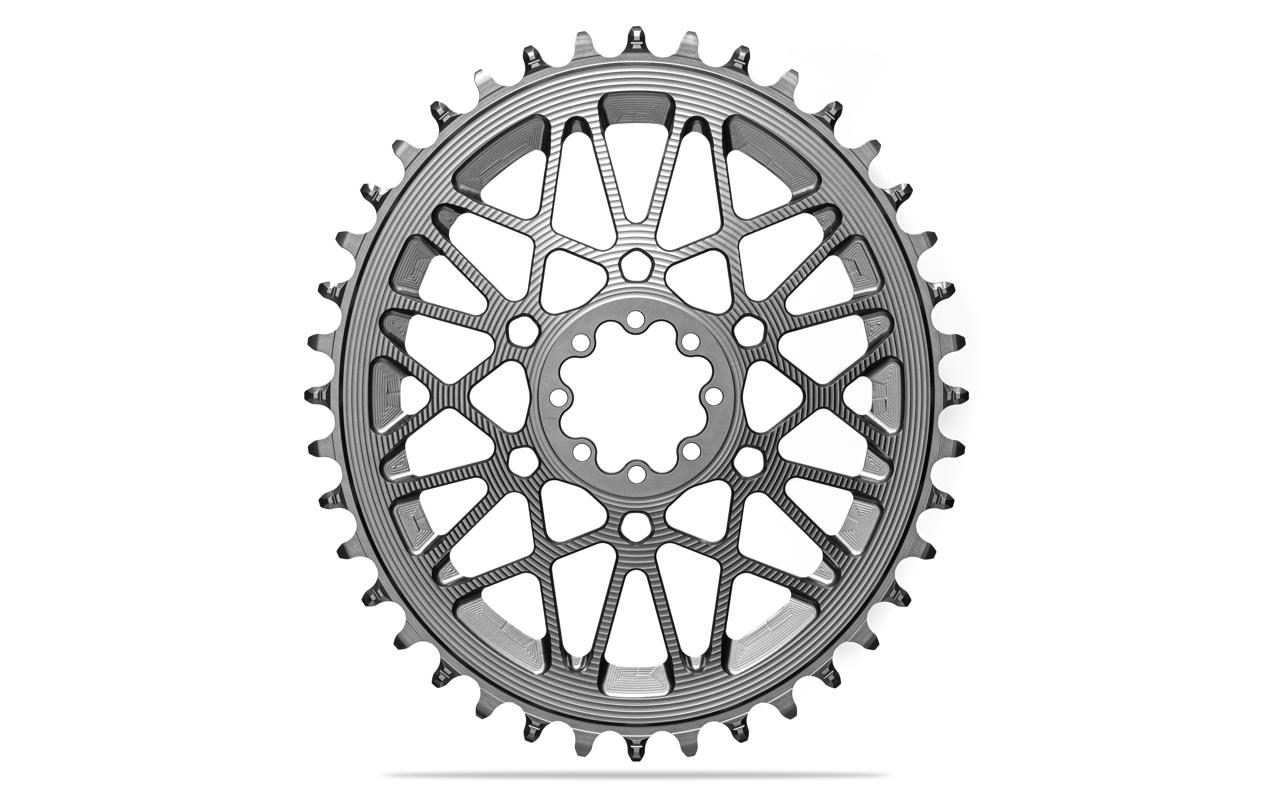

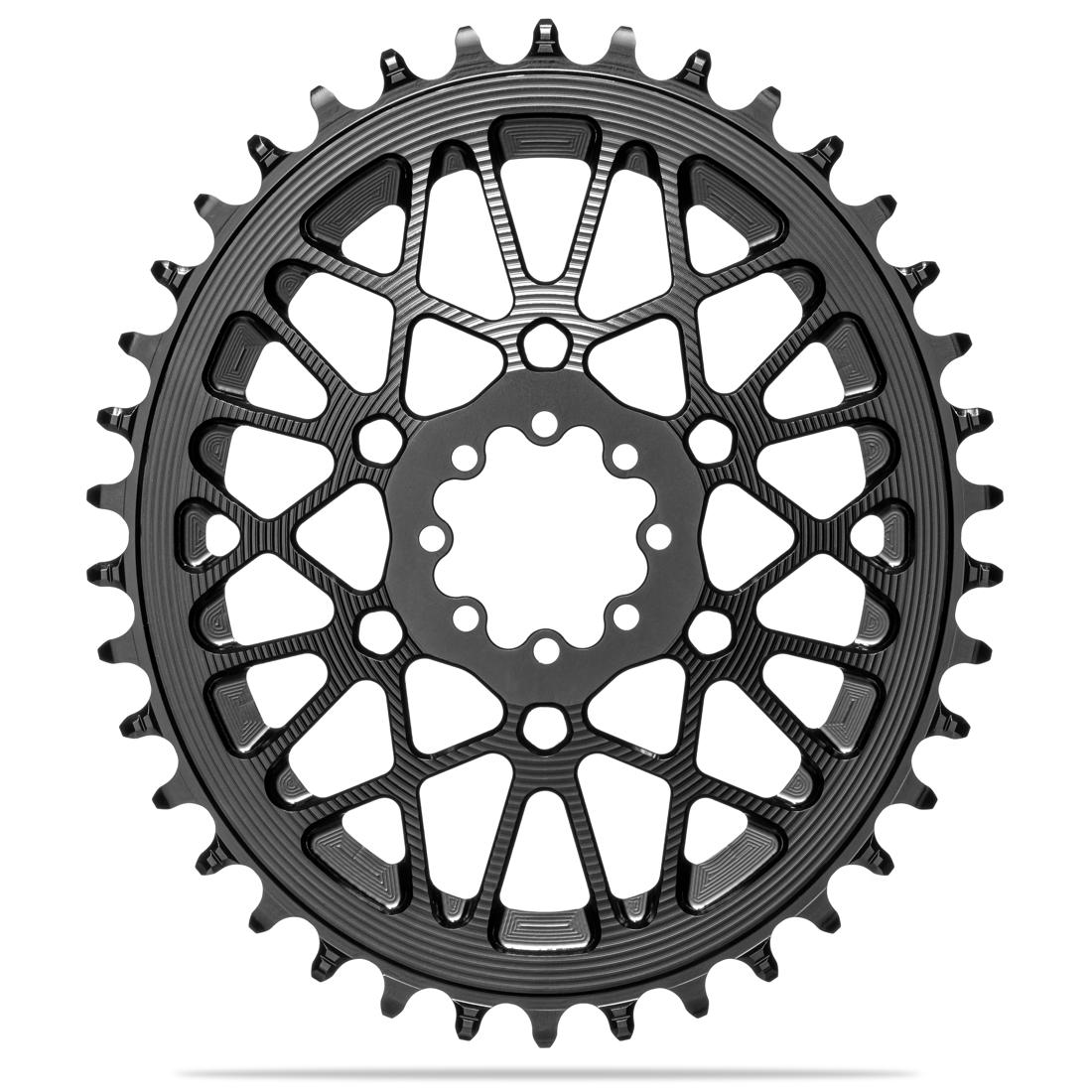

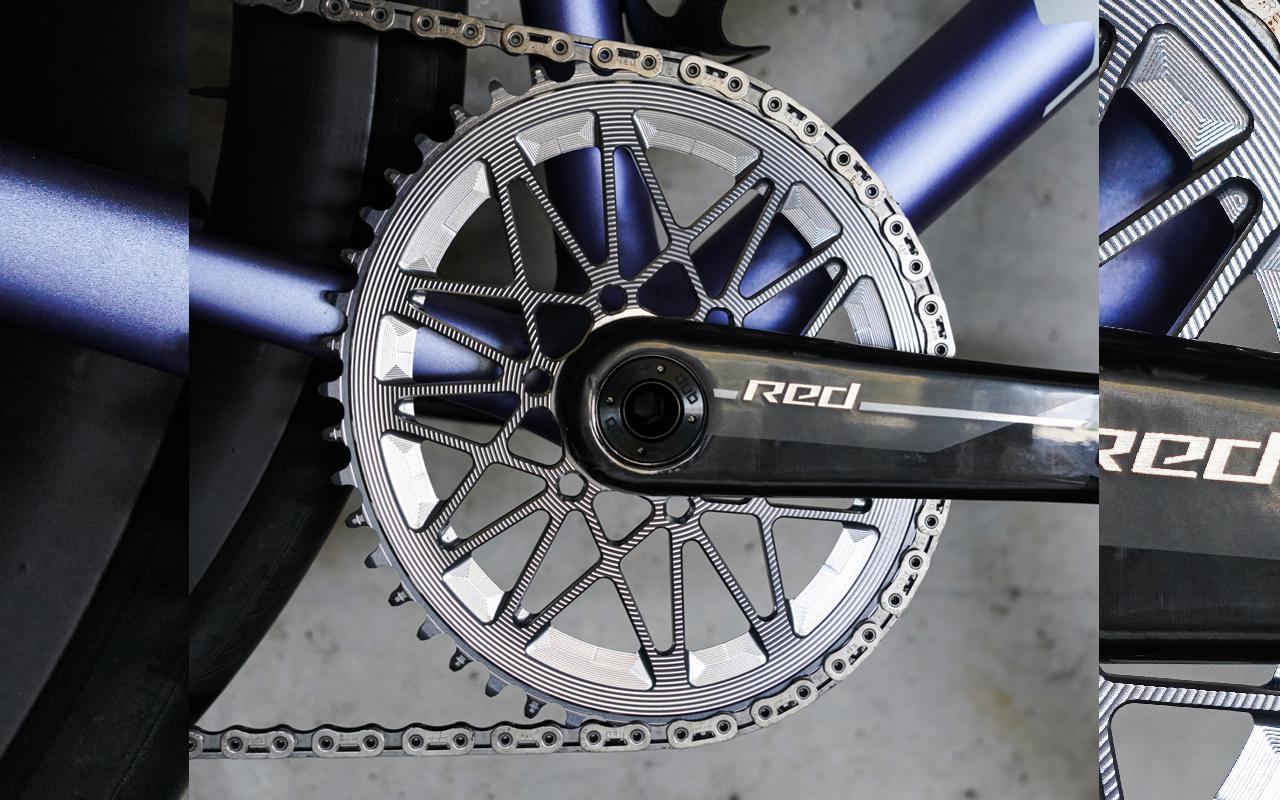

OVAL AXS for SRAM Road-Gravel 8 bolt (Premium chainring)
The Original absoluteBLACK Premium direct mount 1X Oval chainrings are specifically designed for Sram AXS Road/Gravel drivetrain cranks. Fits cranks with 8-bolt mounting pattern. Chainring teeth have been specifically redesigned (patented technology) to work in all conditions with narrower chains that inherently have less space to accommodate mud. It is the most Premium oval chainring on the market with scientifically proven performance gains.
" The oval rings continue to impress me and have made a genuine difference to my riding particularly as suffer from osteoarthritis in both knees. There does not seem to be as much stress on my knees and they don't ache when I have completed my rides. I am super impressed!"
" I had my AB chainring installed last week and after few hours of pedaling, boom, it hit me. This chainring made a big difference. My knees didn’t hurt, I felt faster on flats and uphill. "
" I’ll never go back to round. Super smooth, eased my knee pain, and has helped my climbs on technical ascents ten fold."
|
Size (Mass +/-1g): |
38T (88g), 40T (103g), 42T (109g), 44T(111g), 46T (119g) |
|
Color |
Black, Titanium |
|
Compatibility |
All Sram AXS Road cranks, 8-bolt mounting pattern |
|
Material |
cnc machined 7075 Txxx Aluminum. Long-lasting construction. Mud optimized |
|
Finish |
type II anodizing |
|
Offset |
6mm (same as stock ring) |
|
Ovality |
Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending |
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
38T: 169mm ; 40T: 177mm ; 42T: 185mm ; 44T: 193mm ; 46T: 202mm
Advantages of our special Direct mount narrow wide chainrings:
*Finest design to provide excellent weight to strength ratio
*One of a kind special oval shape
*Greatly improves traction and climbing abilities
*Unique Patented alternate wide and narrow teeth profiles to keep your chain in place.

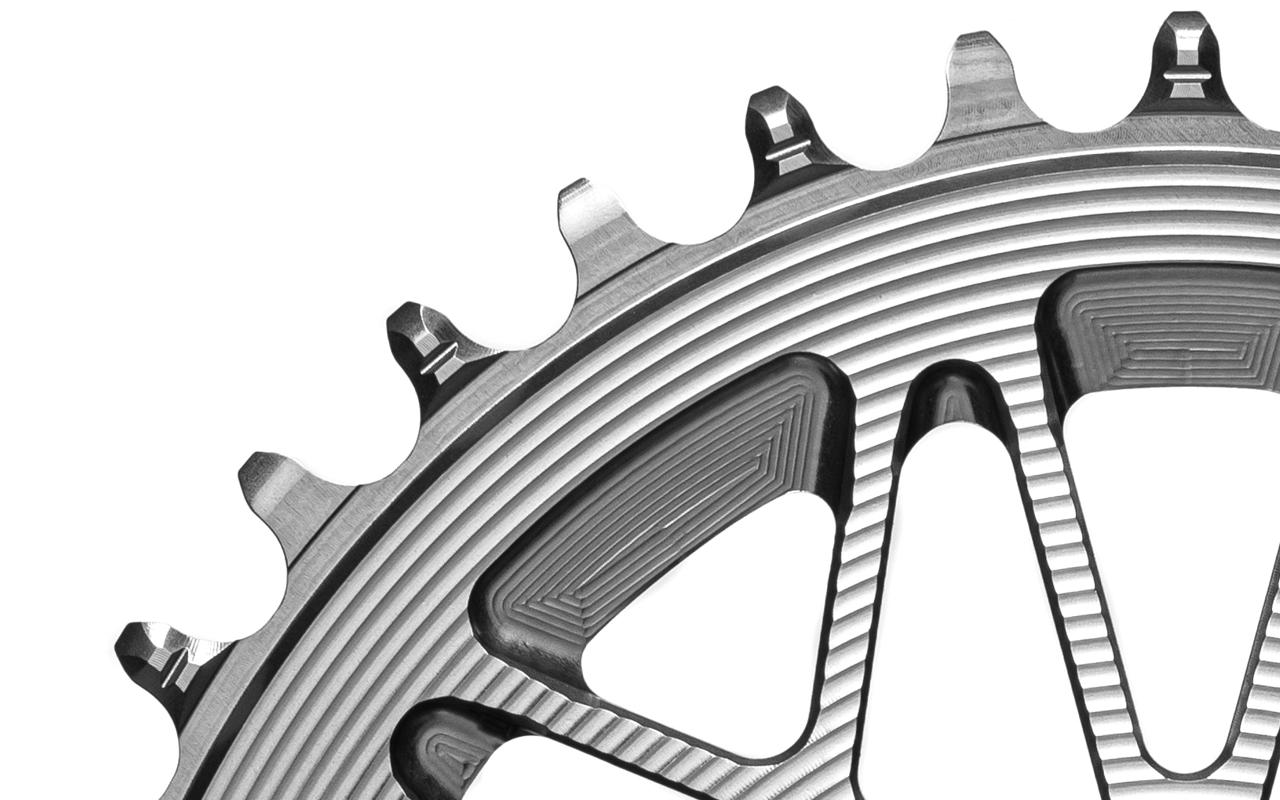

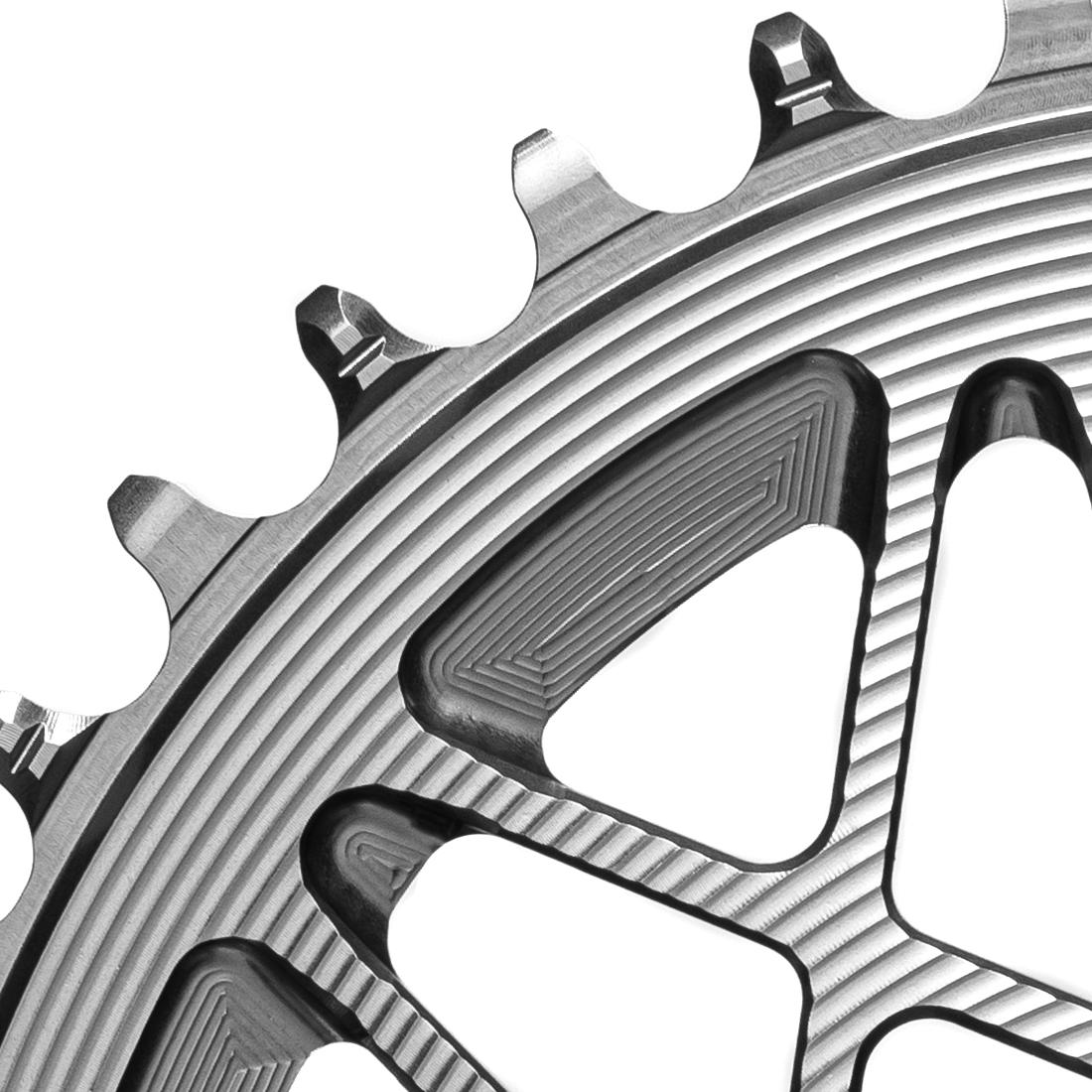

*Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
*Superb quality and great look.
*You will ride faster using ovals. If you keep using round ring then others will get quicker.
*You will not "feel" the oval shape at all
*Reduces stress on knees
*We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.

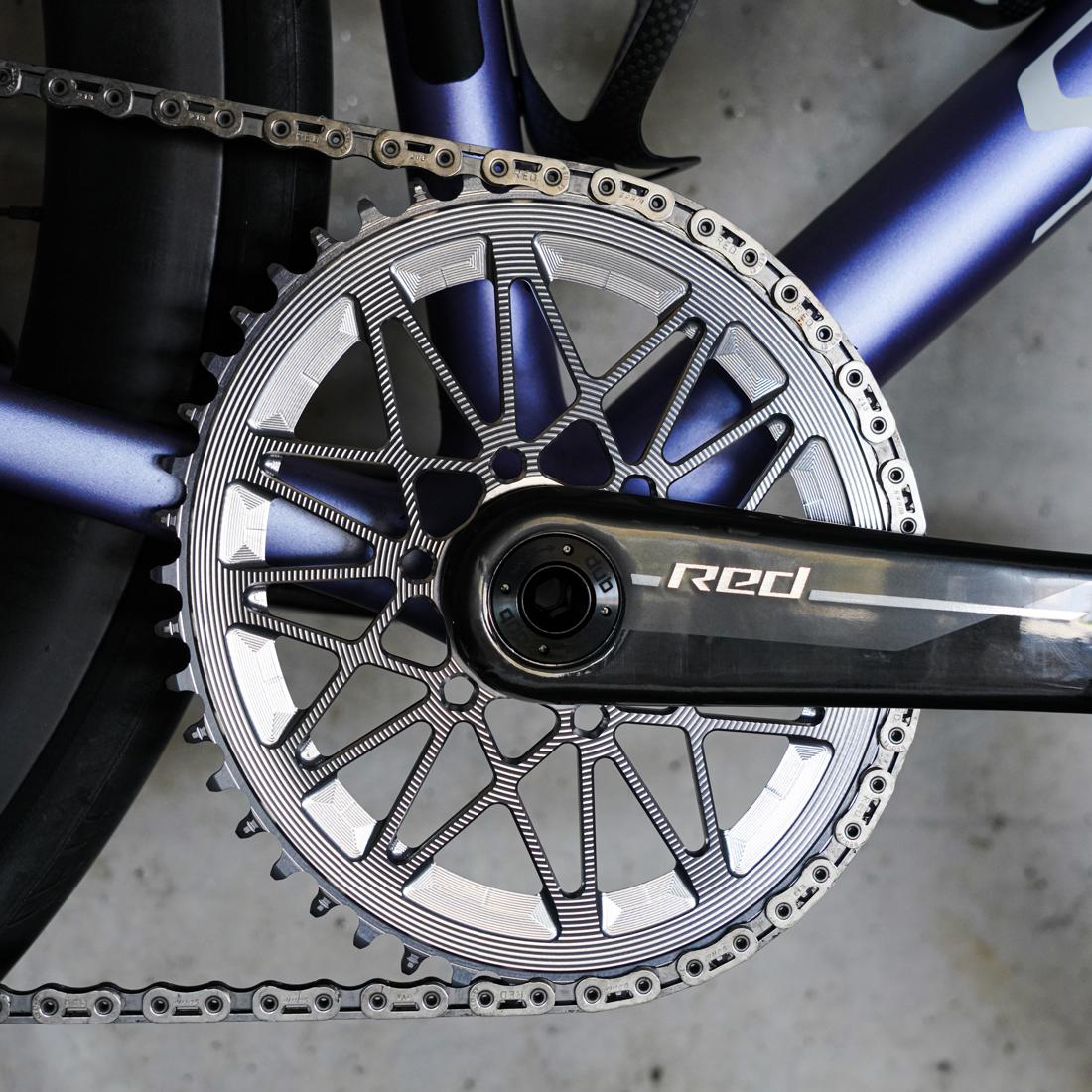

How to mount our Oval chainring to 8 bolt interface crank
Remove the crank from the bike. Unscrew all 8 torx t-20 bolts from the crank and remove the old chainring. Clean the crank mounting splines with a cloth and put small amount of grease on them. Position the chainring in place - note, there is only one way to fit this chainring to Sram crank because mounting spline pattern is not fully symmetrical. Close all original 8 bolts to about 4Nm using T-20 torx key.
Please use SRAM’s recommendations for the correct chain length calculation. For this purpose, oval chainring tooth count = round chainring tooth count. As an example, a 38t oval chainring is equivalent to a 38t round chainring.
Oval (elliptical) chainring does not compromise the work of clutch mechanism in rear derailleur.
Designed in UK. Manufactured in Poland (EU).
Chainring is protected by patents US11718368, EP4239221A1, ES2982767T3 ; Design patents: 015023511-0001, 015023511-0002, 015023511-0003, 015023511-0004, 015023511-0005 ; SRAM, AXS and T-Type names are trademarks of SRAM LLC and are used for informational purposes only.
