Round BB30 chainring for SRAM cranks

$62.00
Size
Color
Qty
Availability

In Stock !

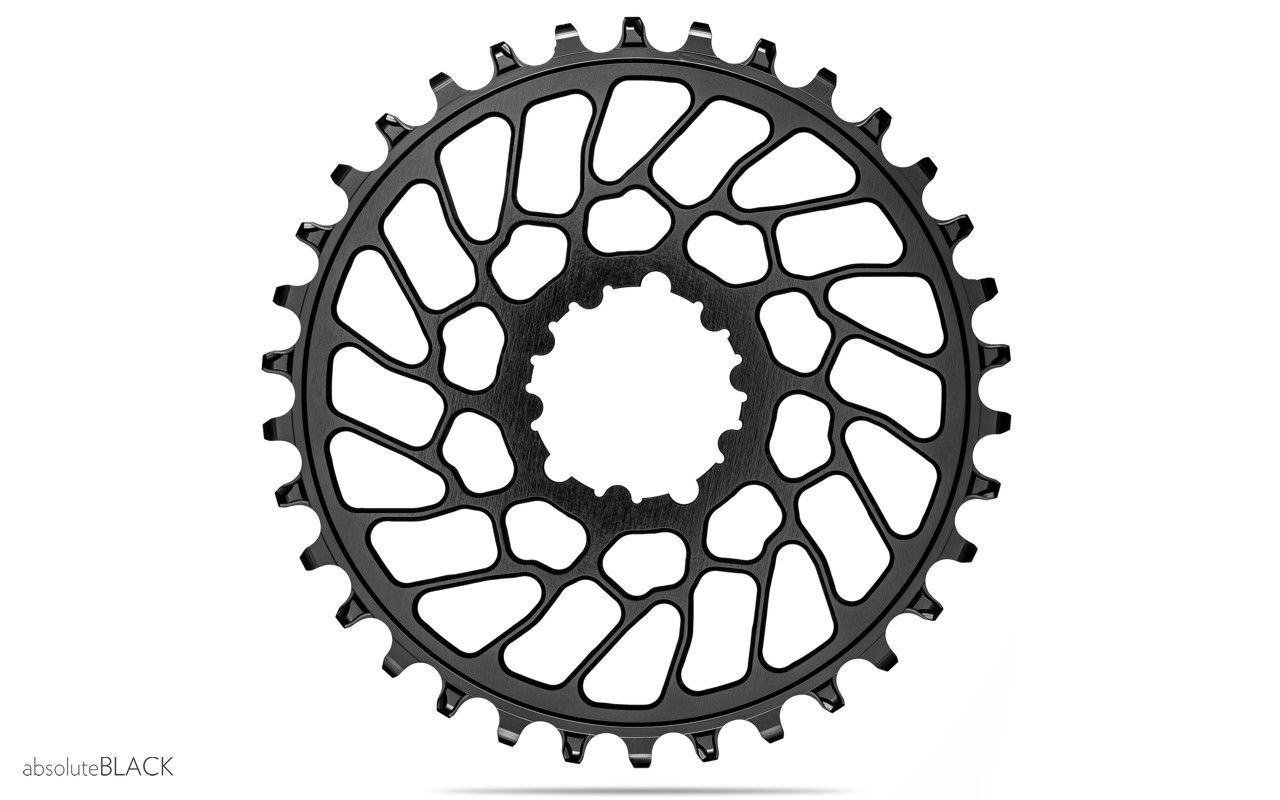

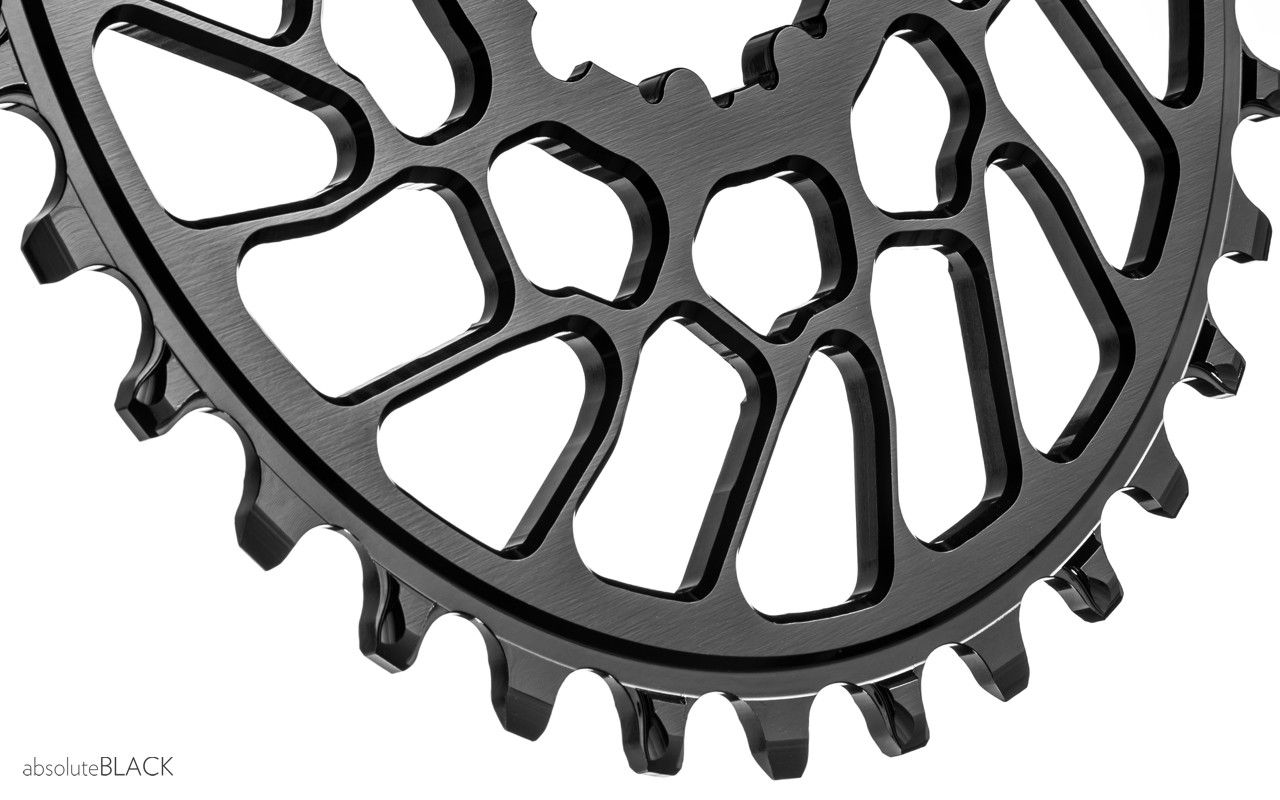

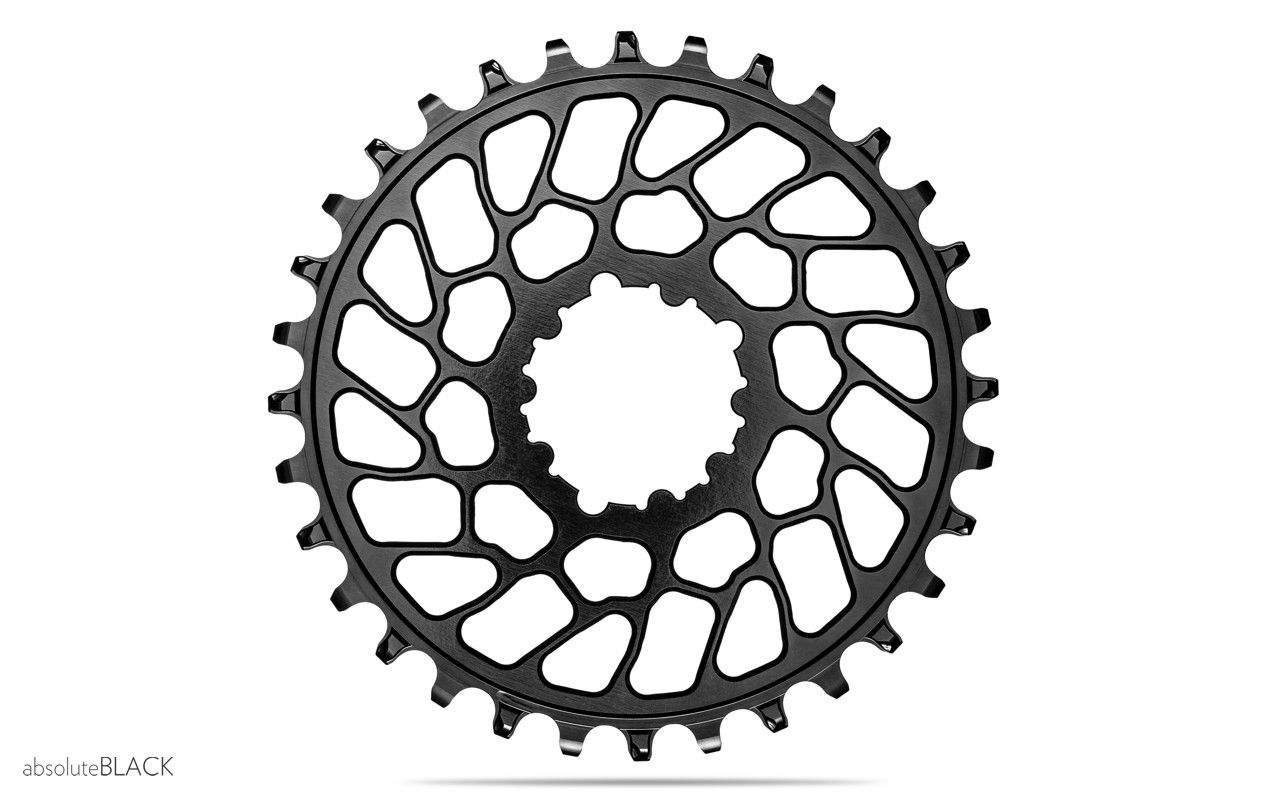

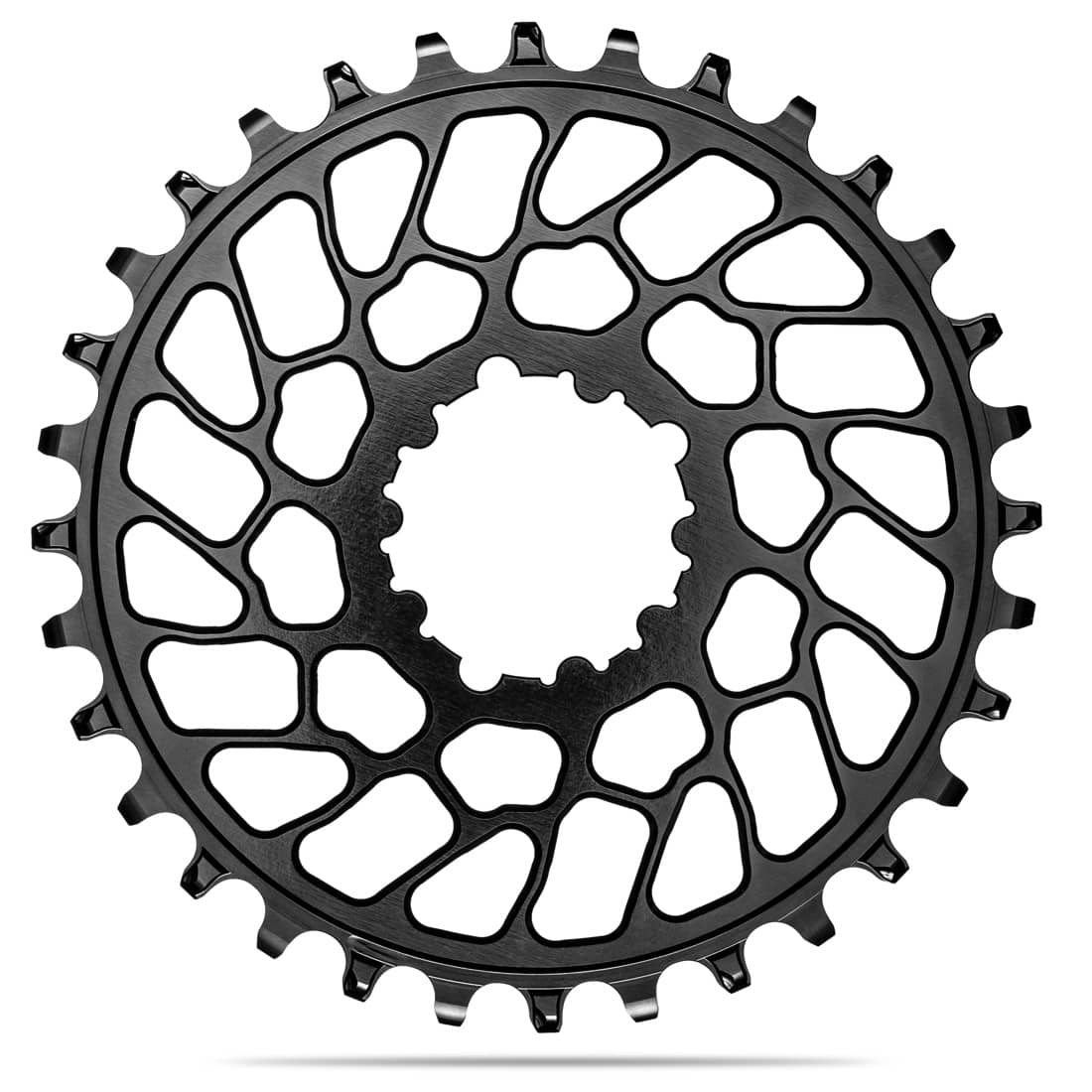

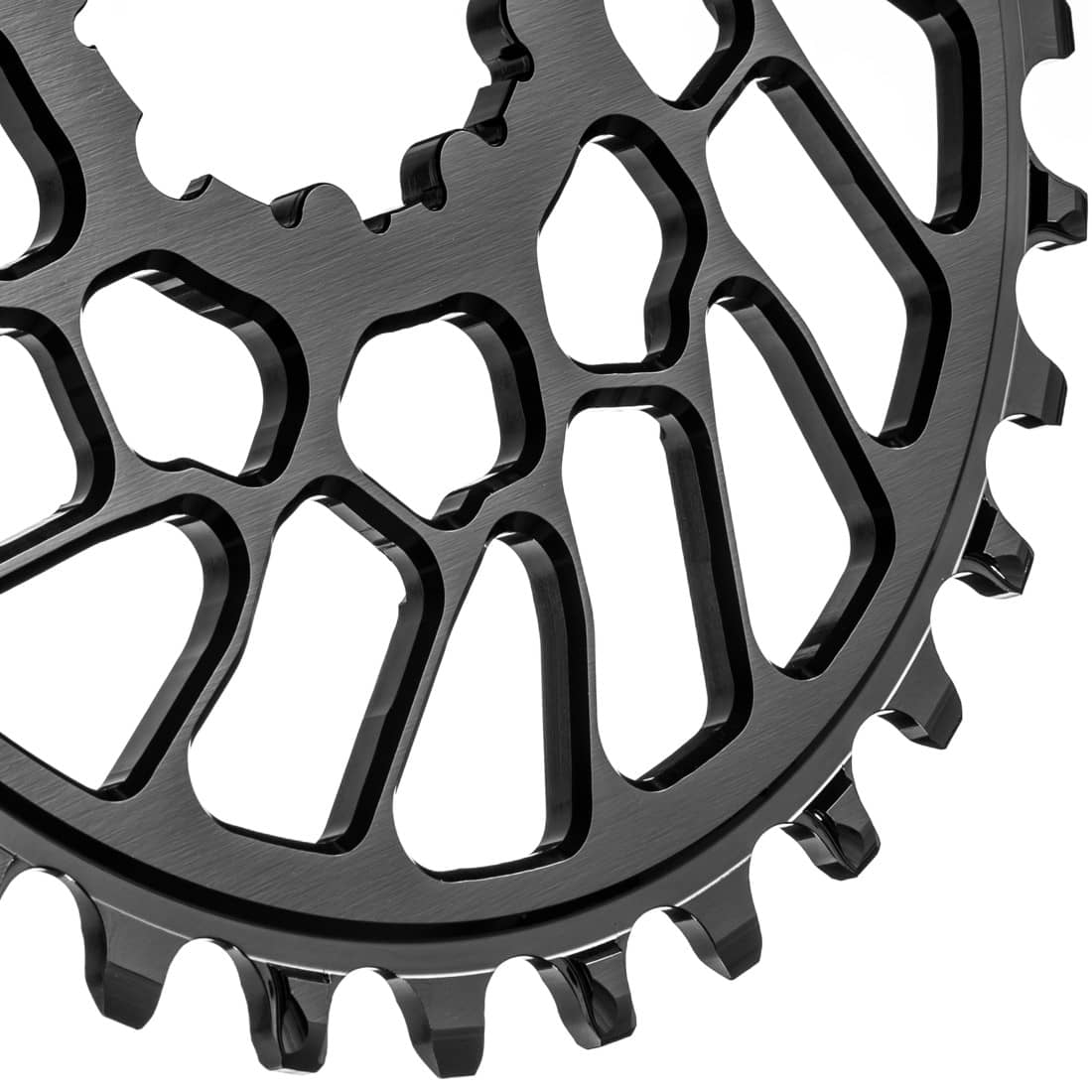

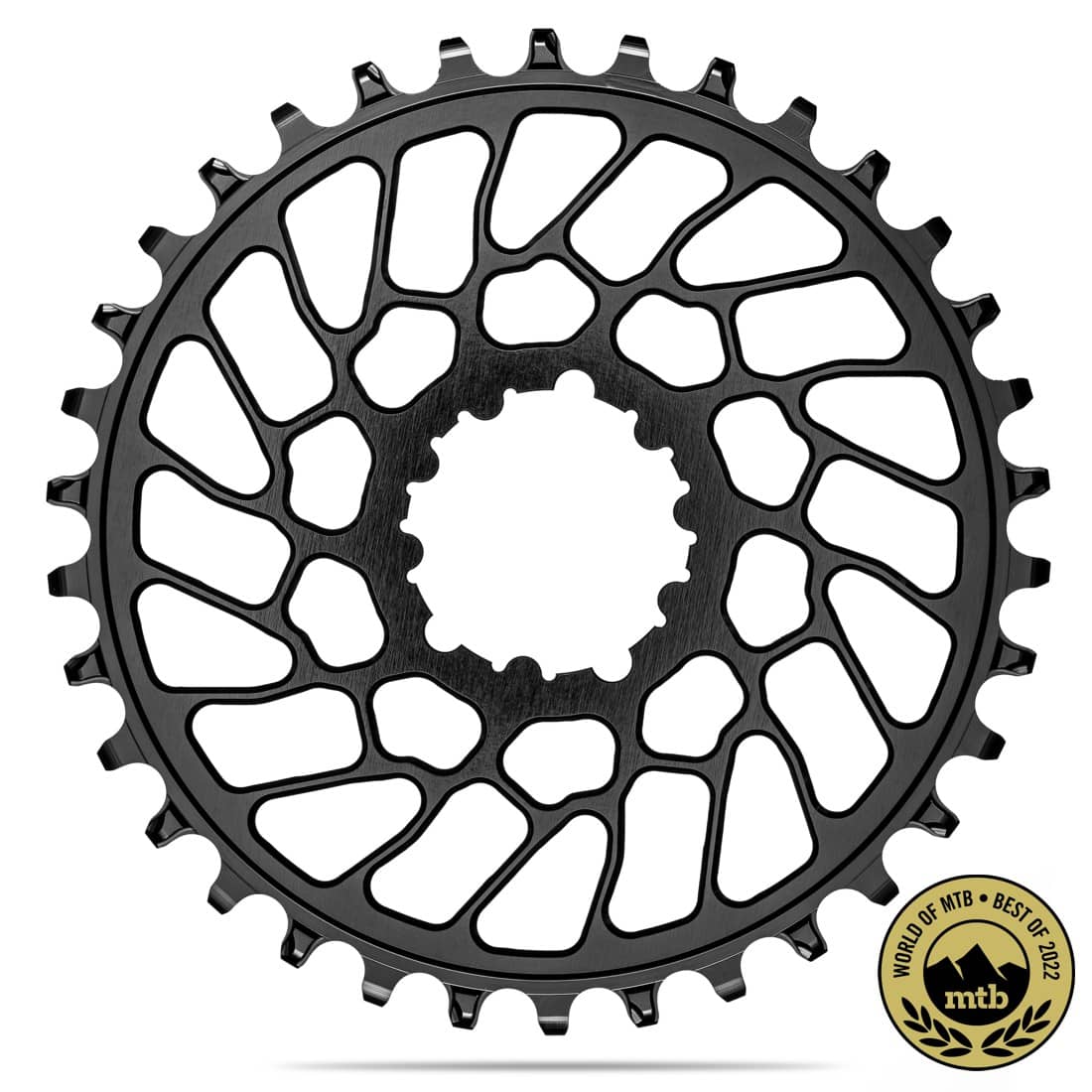

Premium Round direct mount chainring designed for Sram BB30/PF30 cranks with Short spindle. They are also 100-percent optimized for Eagle 12spd.

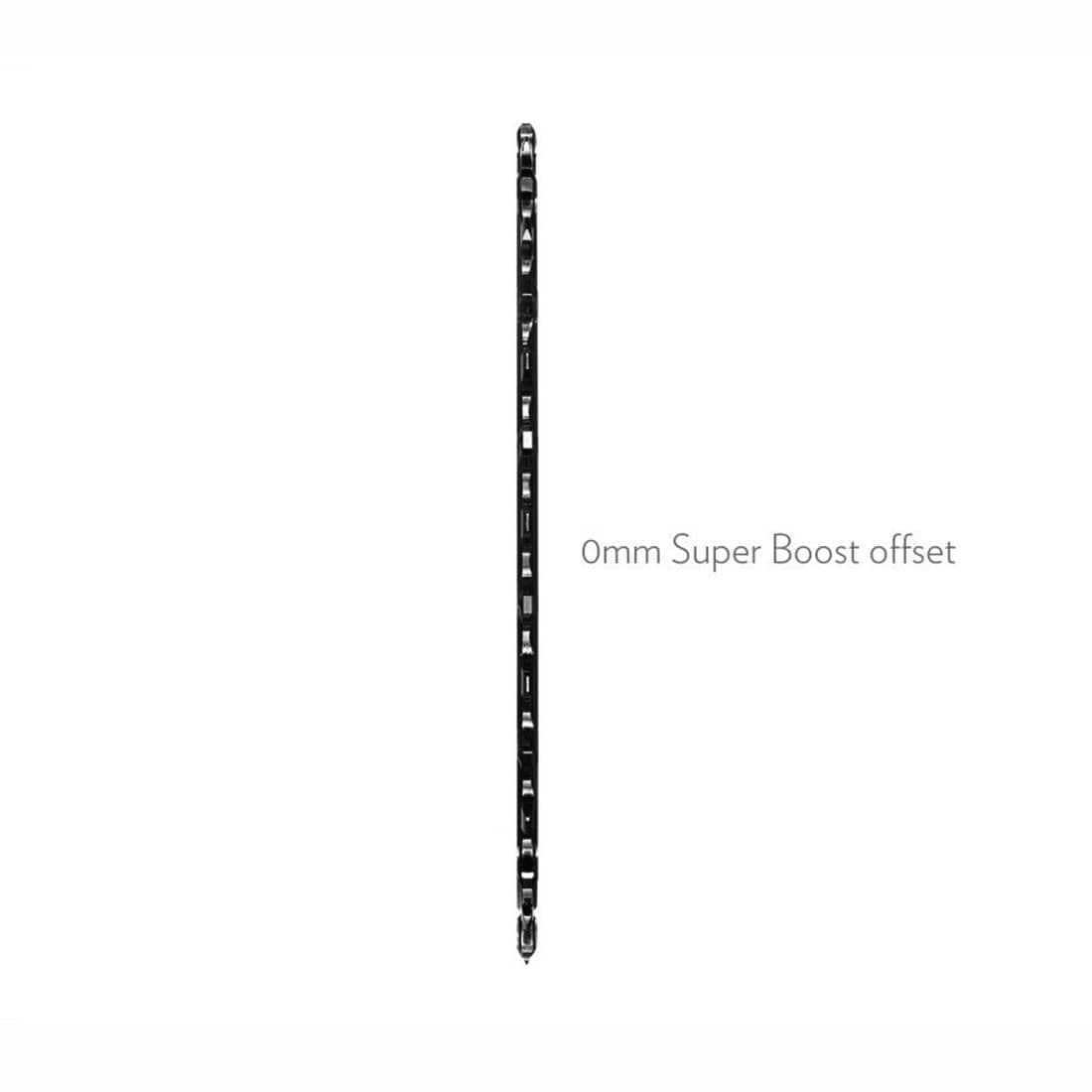

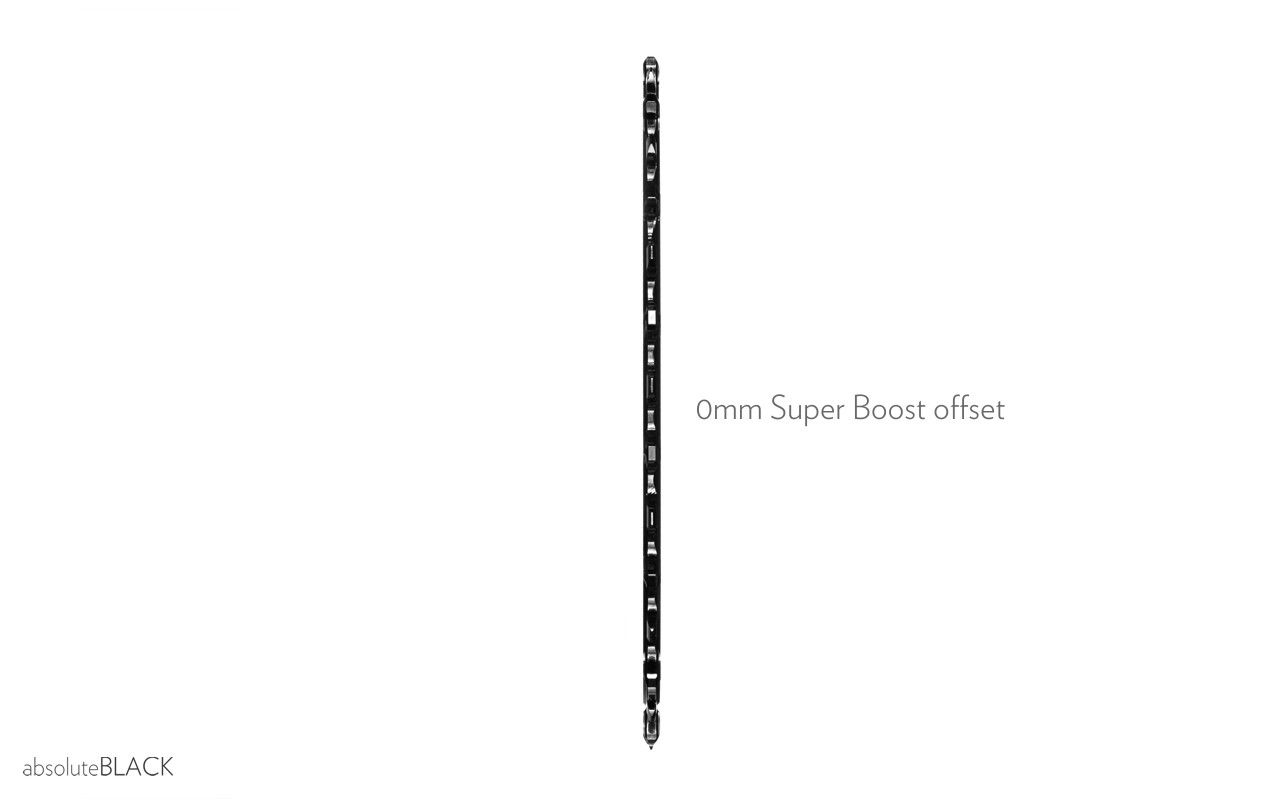

These direct mount chainrings are designed for Sram BB30/PF30 SHORT spindle cranks. Chainring is flat, as opposed to our GXP model with 6mm offset. Short spindle cranks do have 9mm BB spacer on drive side, where long spindle version has 15mm. If you have long spindle version, then buy our GXP model.

Size (Mass +/-1g):

30T(53g), 32T(57g), 34T(63g)

Color

Black

Compatibility

SRAM XX1, X01, X0, GX, X9, X7, S2210, S1400 and Truvativ AKA cranks. BB30 short spindle only! Also fits for Fatbikes with GXP spindle. 9, 10, 11 and 12spd Eagle compatible.

Material

cnc machined 7075 Txxx Aluminum. Long-lasting construction

Finish

anodized

Chainline

48,7mm

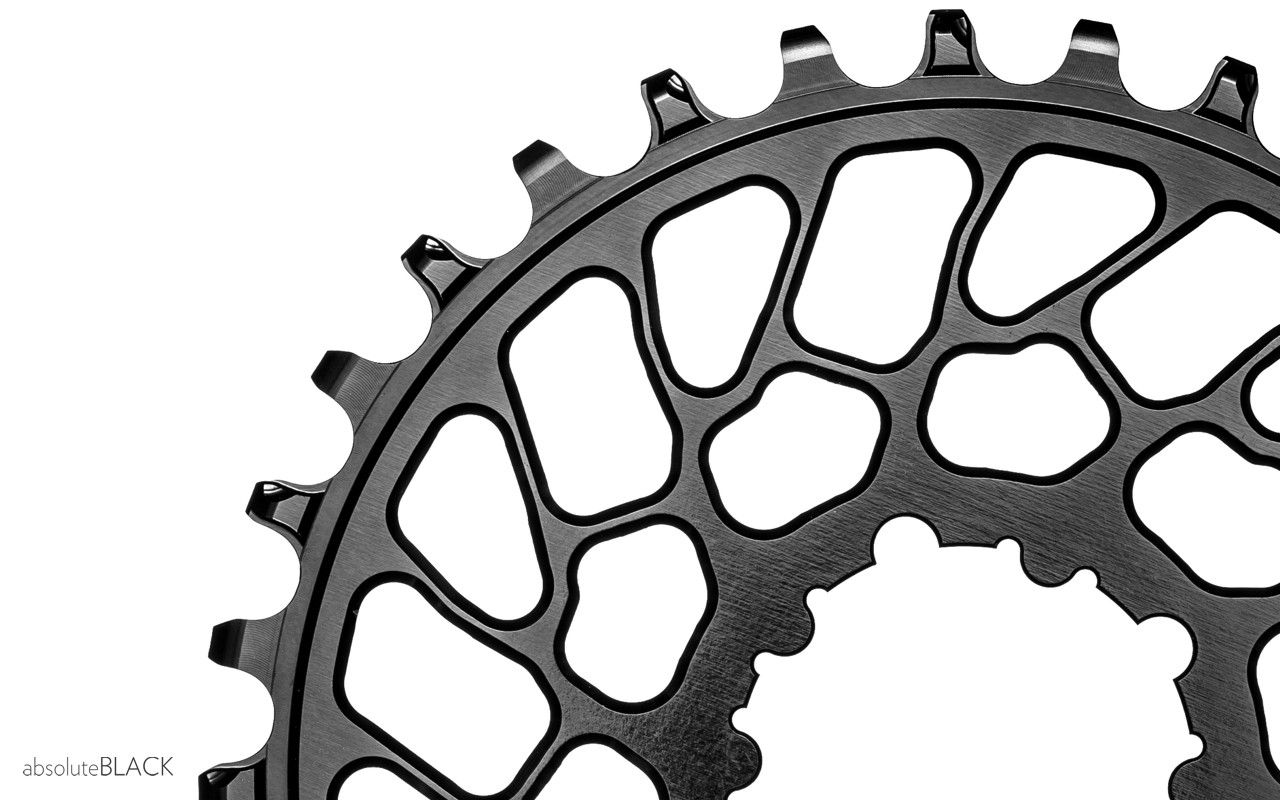

Spiderless (direct mount) chainrings allow for flawless single speed or Sram 1x9/10/11 drivetrain setup. These chainrings save more than 150g over the regular spider and chainring combo. Reliable, extremely light, stiff and clean looking on the bike. Always use a new chain with a new chainring. Optimized to ride in heavy mud thanks to specially designed chamfers.

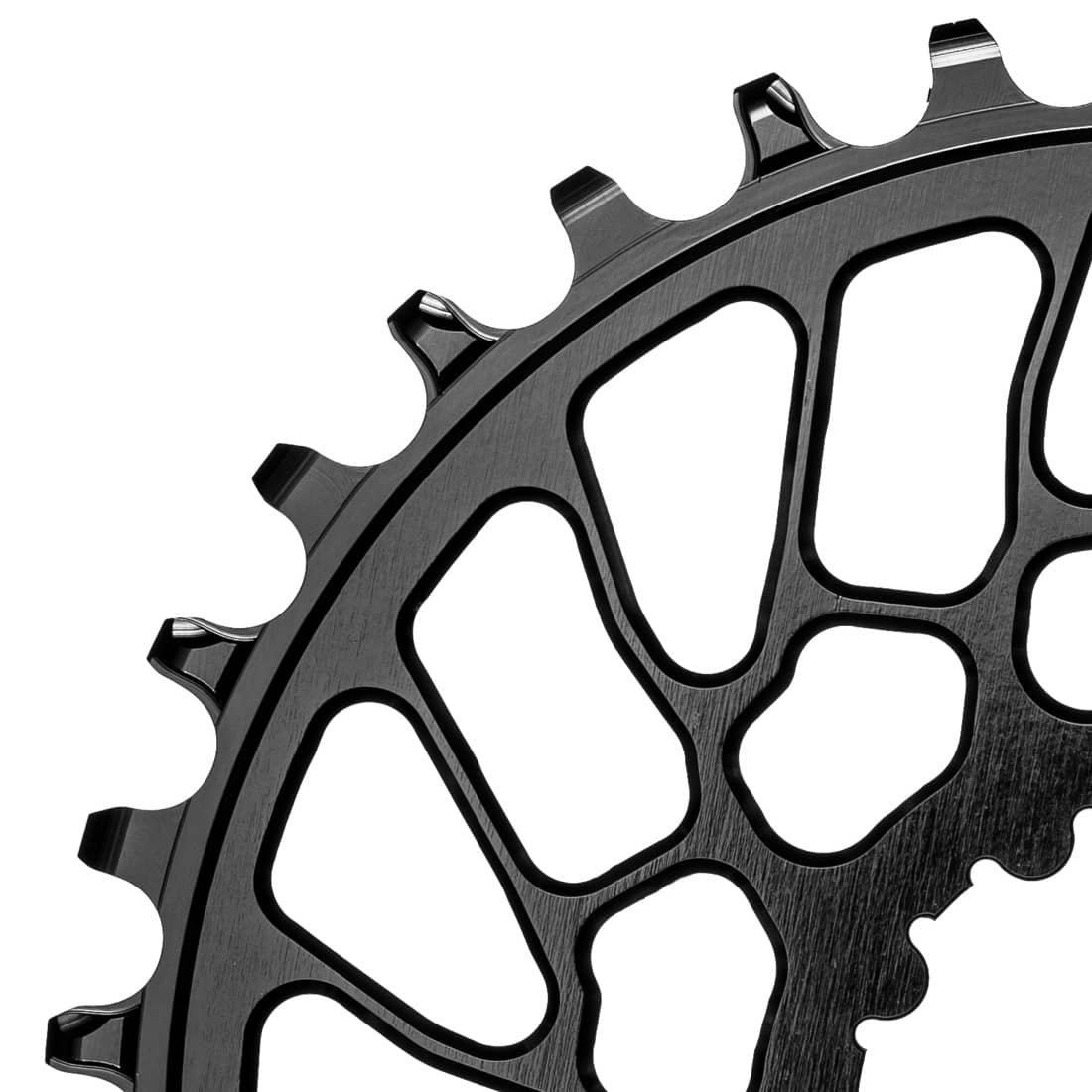

The most advanced, Patent Pending tooth profile on the Market guarantee minimum 12 months of excellent chain retention capabilities! We mean it.

Looking for 28T?

Please choose our GXP version for this size. 28T GXP is the only size which will clear the chainstays and create even better chainline on short BB30.


How to mount our Round chainring to Sram GXP and BB30 crank:

You need to unscrew these 3 torx t-25 bolts from the crank. Then remove the spider+chainring combo you currently have there. Clean the splines and put some grease on them. Position the chainring in place (note there is only one way to fit this chainring to Sram crank, so you don't have to worry how to do it). Close all 3 bolts to about 5-7Nm.


Check below which Sram compatible chainring you will require for your Sram crank type. All Sram Cranks have exactly same mounting interface regardless the model or axle type. The only thing you need to determine is chainring offset.

Which sram chainring should you choose



BB30 sram chainrings and axles explained

Designed in UK. Manufactured in Poland (EU).

Chain options

10, 11 or 12spd chain for geared bike or 6-8 spd for SS. If used in 1x9 drivetrain - 10spd chain must be used to obtain the performance. (yes - 10spd chain will work great on 9spd cassette)

Chainguide needed?

No.



SRAM, GXP, Eagle and XX1 are trademarks of SRAM LLC and are used for informational purposes only.
