Trek Titanium direct mount derailleur hanger
Don't wait, order now.
Thanks for your rating.
Do you like this product? Share it with your friends!

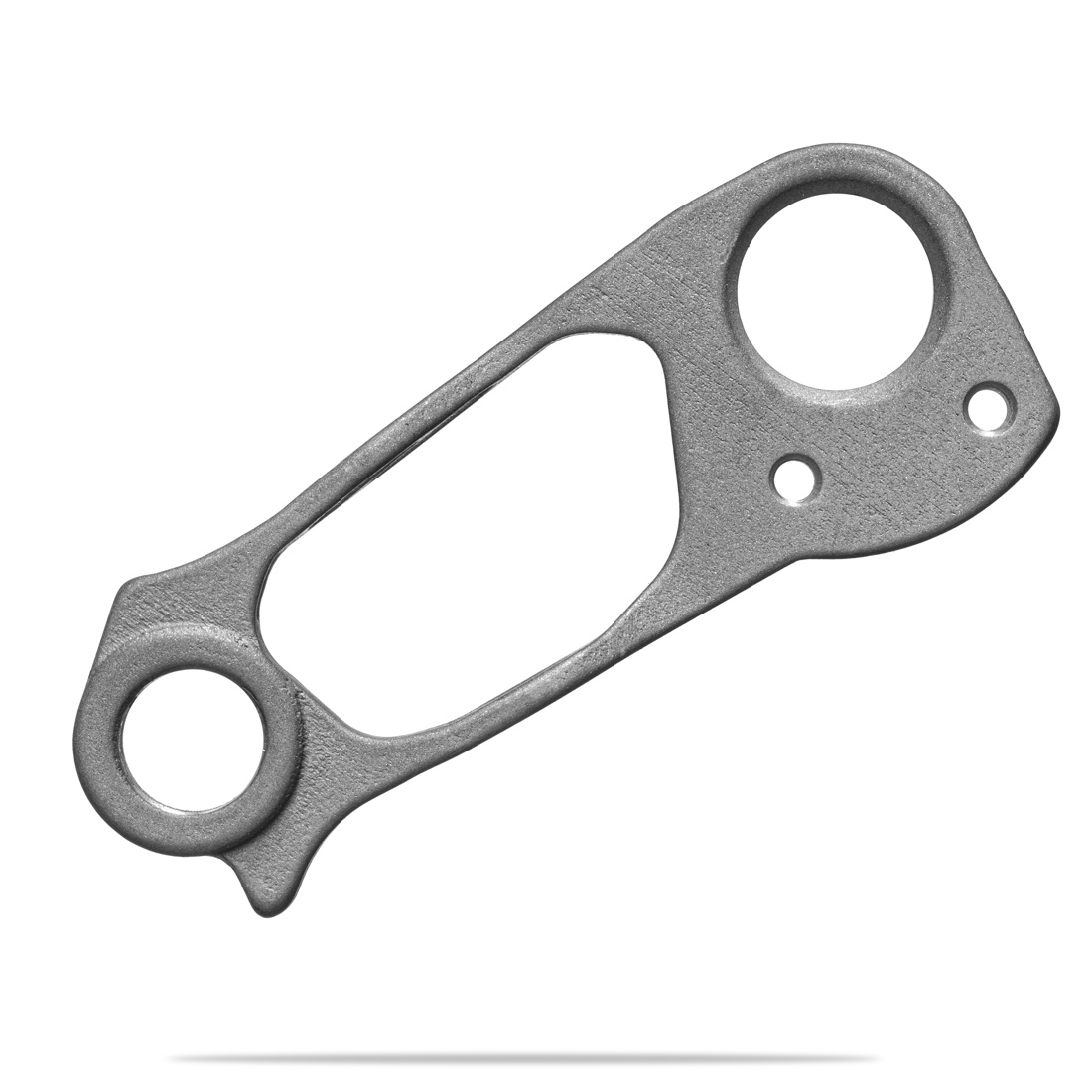

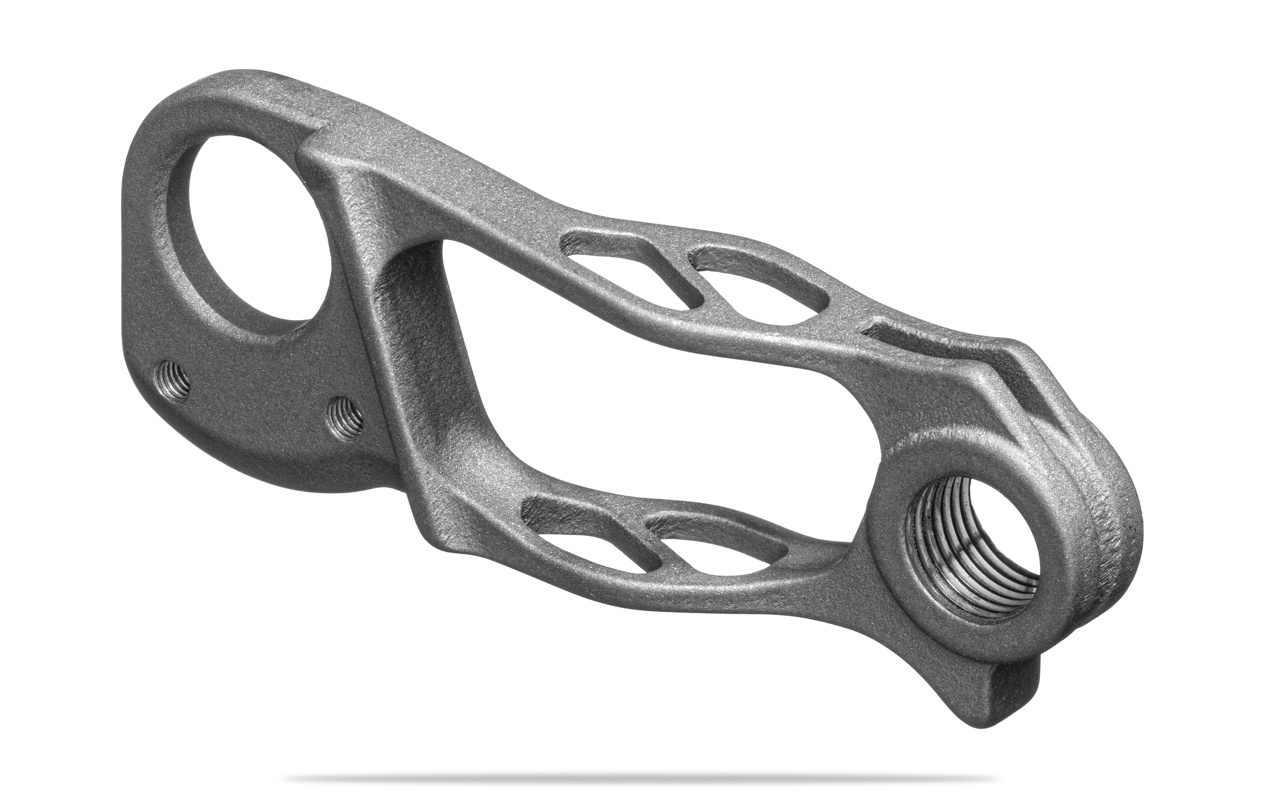

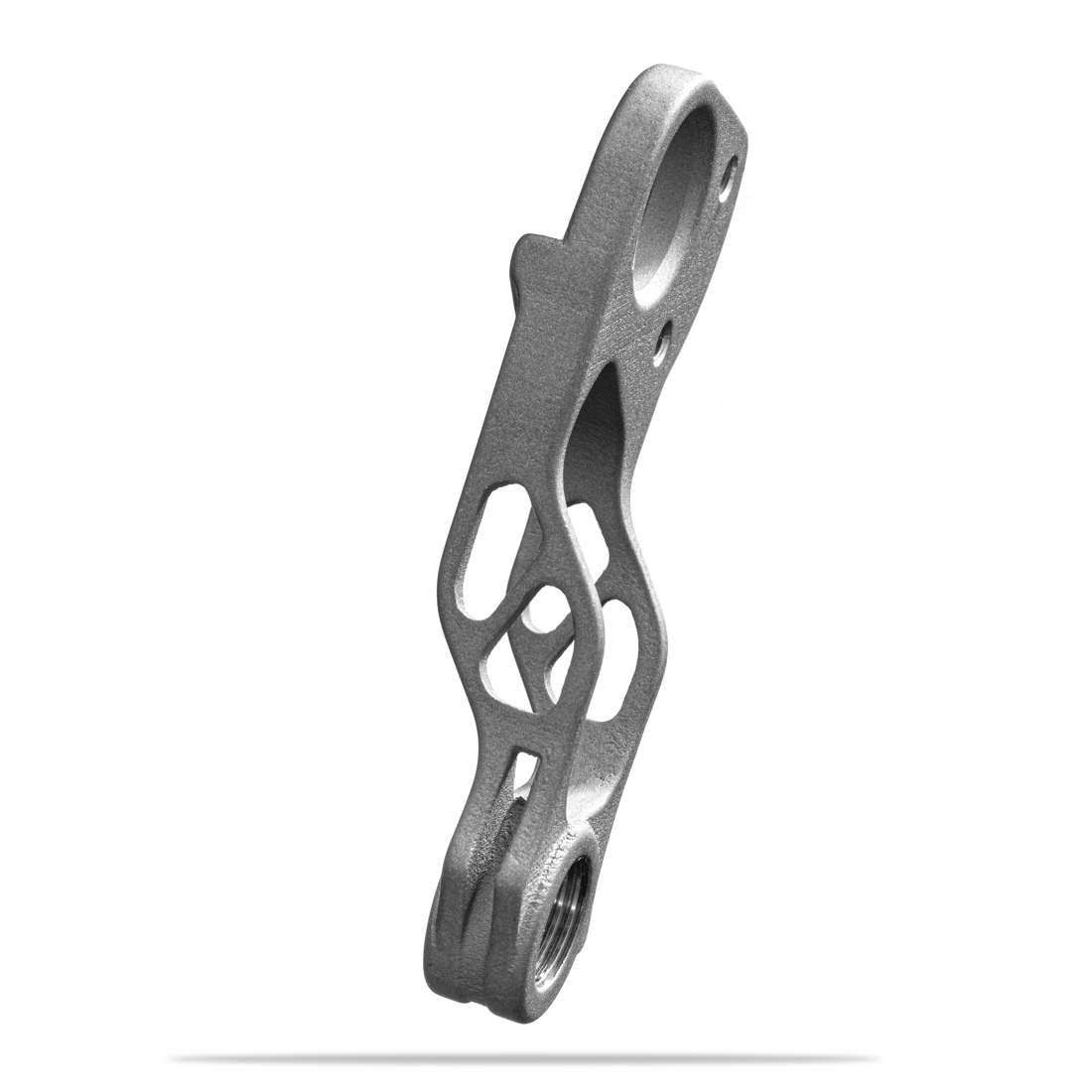

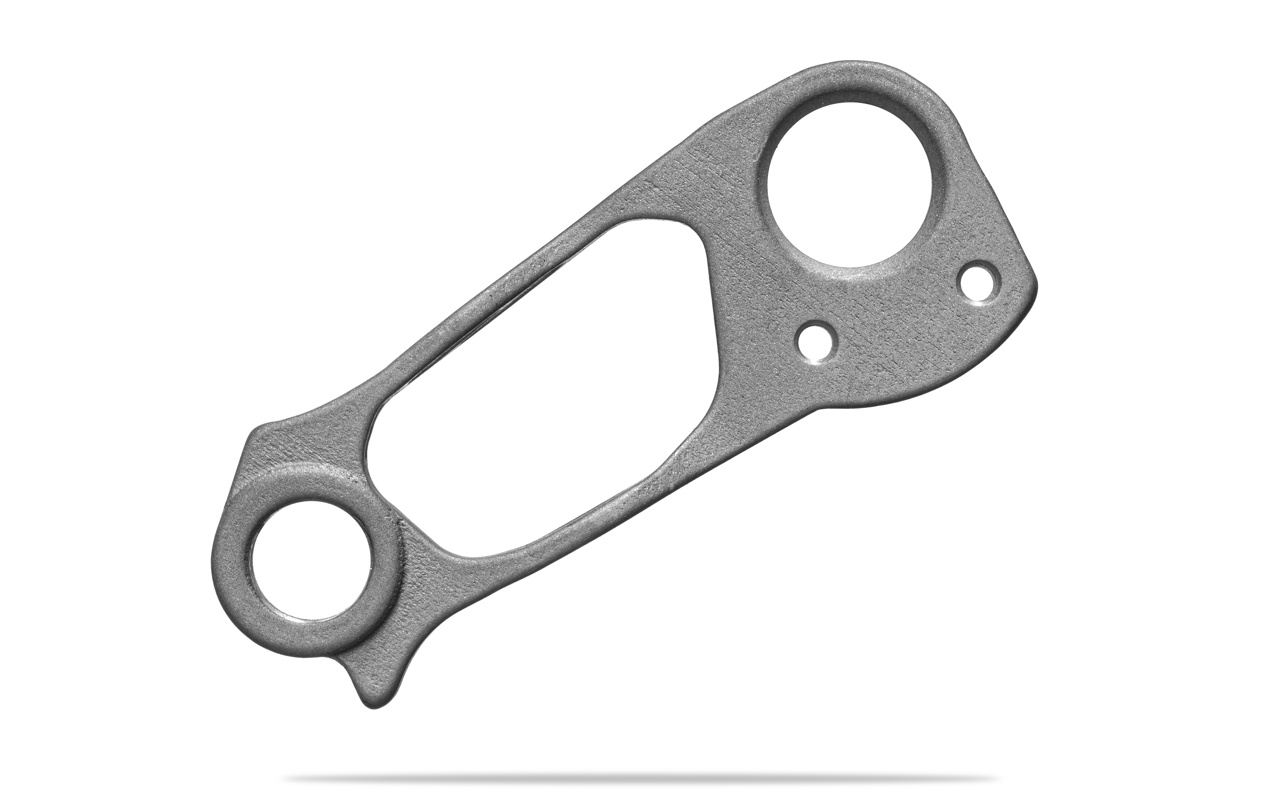

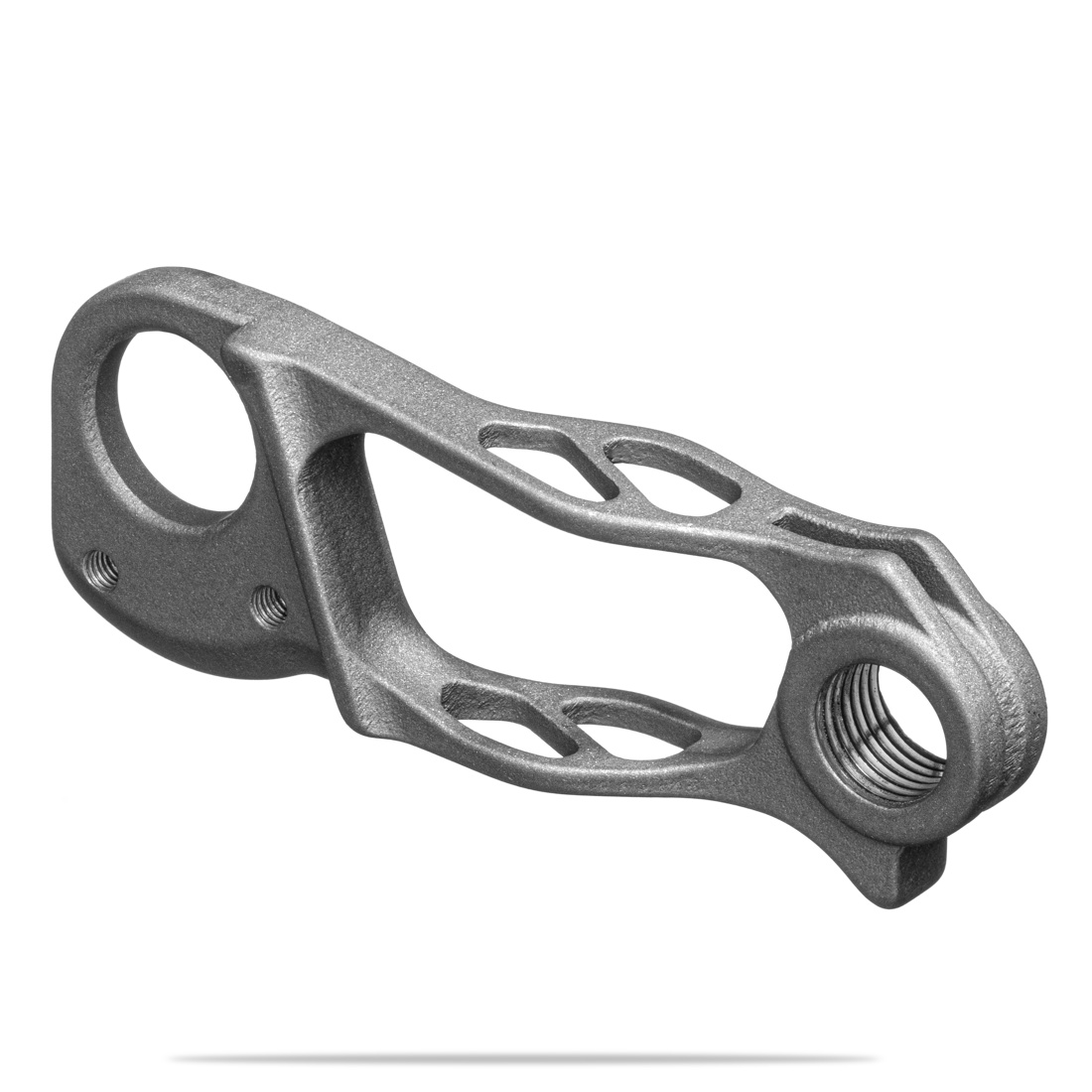

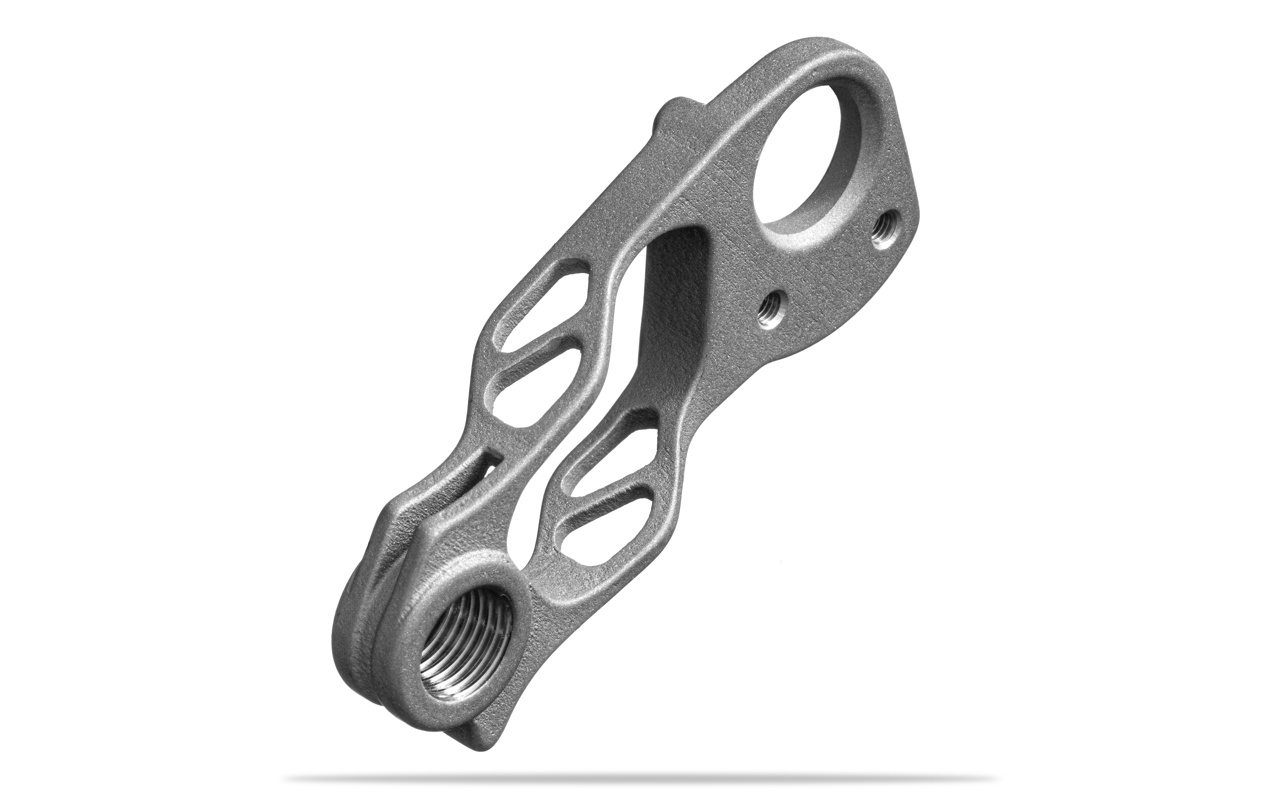

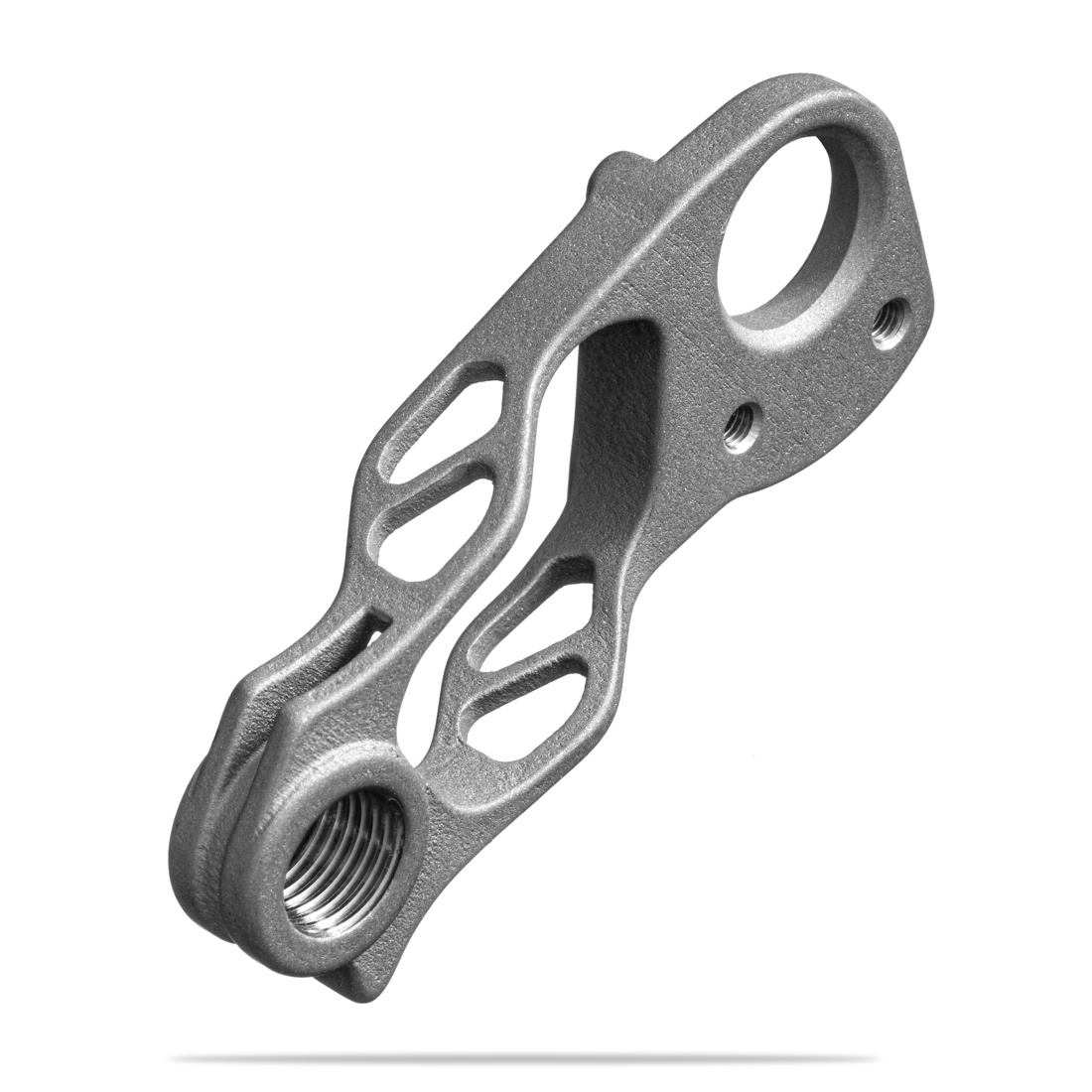

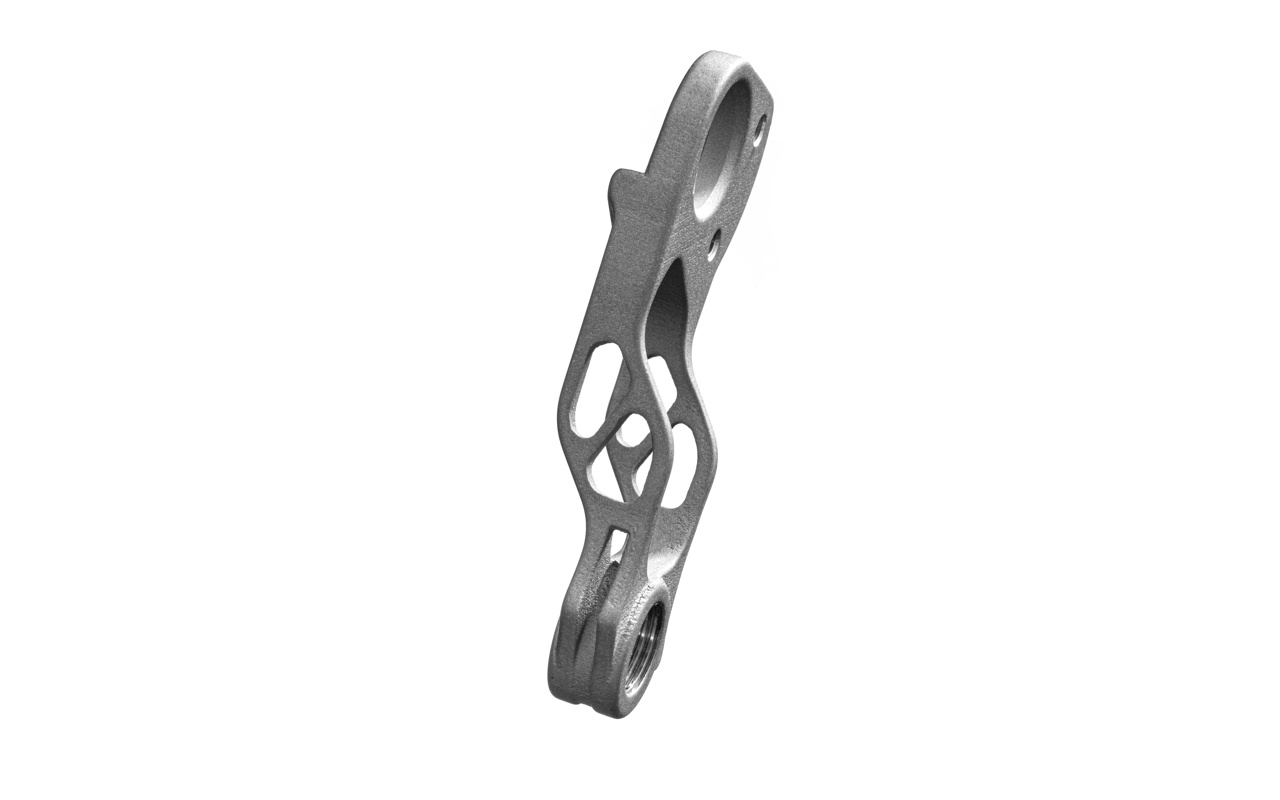

Some components are designed to disappear. This one is designed to be noticed. 3D-printed from titanium, the absoluteBLACK direct-mount derailleur hanger for Trek brings a distinctive sculpted form to one of the most overlooked parts of a modern bicycle. Unlike hangers with as-printed threads, ours features CNC-machined threads for precise fit, alignment, and dependable installation. The integrated direct-mount design reduces weight by approximately 50% compared to the original hanger and Shimano B-link combination.
|
(Mass +/-1g): |
17.1g |
|
Color |
Titanium |
|
Compatibility |
Shimano groupset only. Frames: Madone (2019-2024) / Emonda (2018-2024) / Boone (2019-2024) / Domane (2019-2024) / Speed Concept (2021-2024) / Checkpoint (2023-2024) |
|
Material |
Titanium Ti6Al4V |
|
Shimano groupsets |
R9250 / R9200 / R8150 / R8100 / R7100 / R9100 / R8000 / R7000 / RX820 / RX817 / RX815 / RX812 / RX810 |
How to mount the hanger
Simply remove the rear wheel, then open two small bolts with 2mm allen key. Then replace the hanger and mount the bolts back with max torque of 1.5Nm. The hanger fits exactly same way as the original one does. On the derailleur side you need to remove a Shimano B-link as this hanger mounts directly to the derailleur.
Designed in UK.
